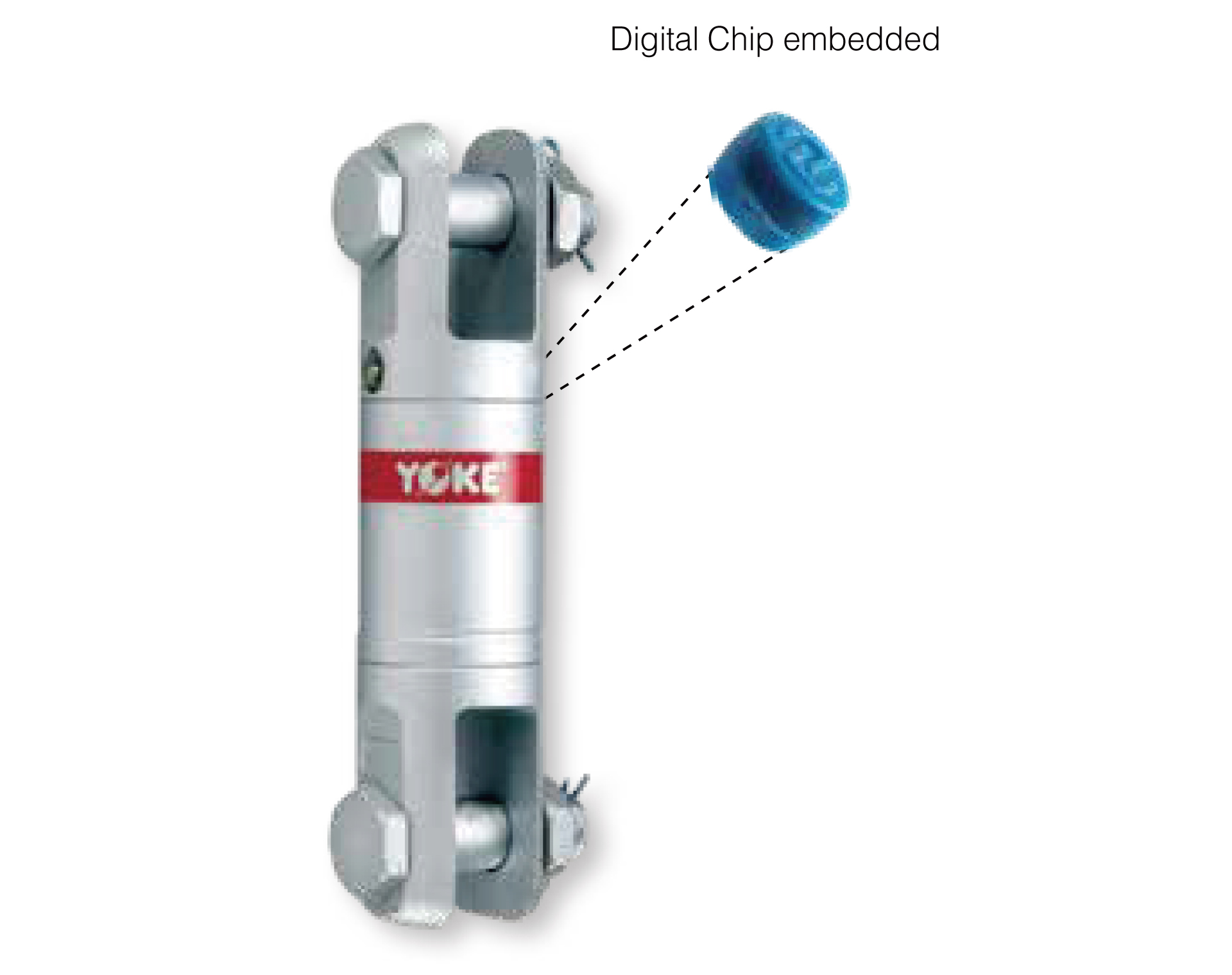

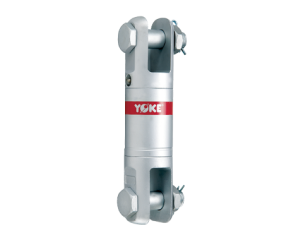

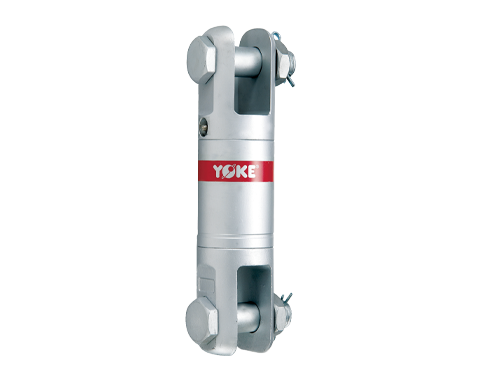

Angular Contact Bearing Swivels - Jaw + Jaw
Item No.8-303
● YOKE Swivels are manufactured using the highest
grade of material available.
● YOKE Swivels are designed with a safety factor of 5:1.
● YOKE Swivels are available in sizes from 0.75 tonnes to 25
tonnes.
● YOKE Swivels are available for wire lines 1/4" to 1 1/4".
● YOKE Swivels are zinc plated for corrosion resistance
and longer life.
● YOKE Swivels are manufactured with grease fittings
for superior performance.
● YOKE Swivels are designed for low starting torque and
high rotation speed.
● All Swivels parts are 100% magnaflux crack detected.
● 20,000 cycle fatigue rate to 1.5 times working load
limit.
● All parts with batch number for quality certified and
traceability.
grade of material available.
● YOKE Swivels are designed with a safety factor of 5:1.
● YOKE Swivels are available in sizes from 0.75 tonnes to 25
tonnes.
● YOKE Swivels are available for wire lines 1/4" to 1 1/4".
● YOKE Swivels are zinc plated for corrosion resistance
and longer life.
● YOKE Swivels are manufactured with grease fittings
for superior performance.
● YOKE Swivels are designed for low starting torque and
high rotation speed.
● All Swivels parts are 100% magnaflux crack detected.
● 20,000 cycle fatigue rate to 1.5 times working load
limit.
● All parts with batch number for quality certified and
traceability.

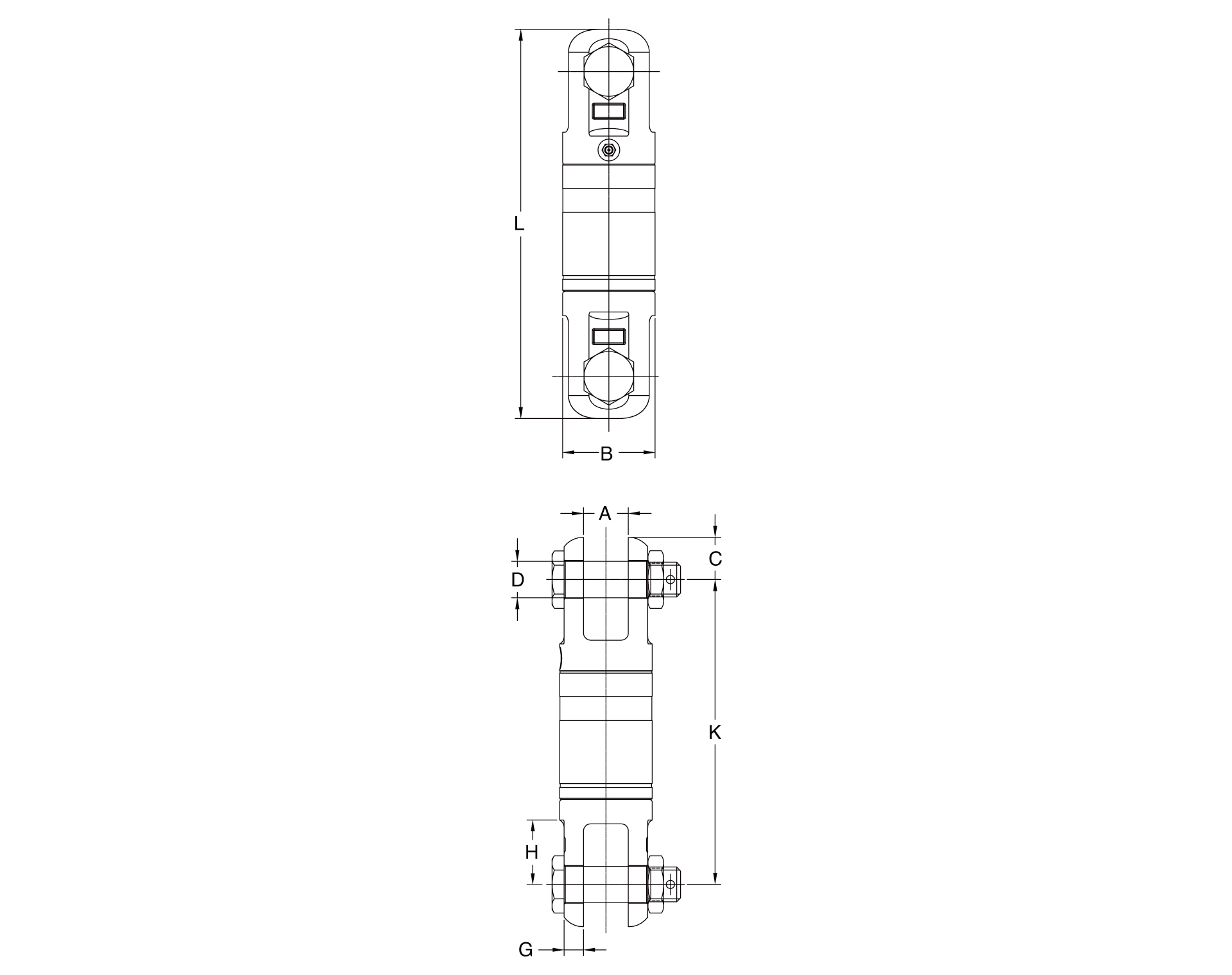

| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | N.W. | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | A | B | C | D | G | H | K | L | kg | ||
| 8-303-0075 | Compare | 0.75 | 6 | 15.0 | 32 | 12.0 | 12.0 | 6.0 | 22.0 | 103 | 128 | 0.5 |
| 8-303-015 | Compare | 1.50 | 10 | 13.0 | 41 | 18.0 | 13.0 | 8.0 | 20.0 | 103 | 138 | 0.9 |
| 8-303-03 | Compare | 3.00 | 13 | 19.0 | 51 | 24.0 | 19.0 | 10.0 | 30.0 | 159 | 206 | 2.2 |
| 8-303-05 | Compare | 5.00 | 16 | 25.0 | 64 | 29.0 | 22.0 | 14.0 | 40.0 | 200 | 259 | 4.4 |
| 8-303-085 | Compare | 8.50 | 19 | 40.0 | 76 | 34.0 | 30.0 | 14.0 | 54.0 | 249 | 317 | 7.2 |
| 8-303-10 | Compare | 10.00 | 22 | 44.0 | 102 | 45.0 | 38.0 | 21.0 | 89.0 | 356 | 445 | 18.0 |
| 8-303-15 | Compare | 15.00 | 25 | 48.0 | 108 | 52.0 | 38.0 | 25.0 | 57.0 | 316 | 420 | 21.7 |
| 8-303-25 | Compare | 25.00 | 32 | 62.0 | 132 | 65.0 | 51.0 | 30.0 | 70.0 | 374 | 503 | 39.5 |
| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | N.W. | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | inch | A | B | C | D | G | H | K | L | lbs | ||
| 8-303-0075 | Compare | 0.75 | 1/4 | 0.59 | 1.26 | 0.51 | 0.39 | 0.24 | 0.87 | 4.06 | 5.04 | 1.1 |
| 8-303-015 | Compare | 1.50 | 3/8 | 0.51 | 1.61 | 0.69 | 0.50 | 0.30 | 0.79 | 4.06 | 5.43 | 2.0 |
| 8-303-03 | Compare | 3.00 | 1/2 | 0.75 | 2.01 | 0.94 | 0.75 | 0.38 | 1.18 | 6.24 | 8.11 | 4.8 |
| 8-303-05 | Compare | 5.00 | 5/8 | 0.98 | 2.52 | 1.14 | 0.87 | 0.55 | 1.57 | 7.87 | 10.20 | 9.6 |
| 8-303-085 | Compare | 8.50 | 3/4 | 1.57 | 2.99 | 1.34 | 1.18 | 0.55 | 2.13 | 9.80 | 12.48 | 15.9 |
| 8-303-10 | Compare | 10.00 | 7/8 | 1.73 | 4.02 | 1.75 | 1.50 | 0.83 | 3.50 | 14.02 | 17.52 | 39.6 |
| 8-303-15 | Compare | 15.00 | 1 | 1.89 | 4.25 | 2.05 | 1.50 | 0.98 | 2.24 | 12.44 | 16.54 | 47.8 |
| 8-303-25 | Compare | 25.00 | 1 1/4 | 2.44 | 5.20 | 2.56 | 2.01 | 1.18 | 2.76 | 14.72 | 19.80 | 87.0 |
