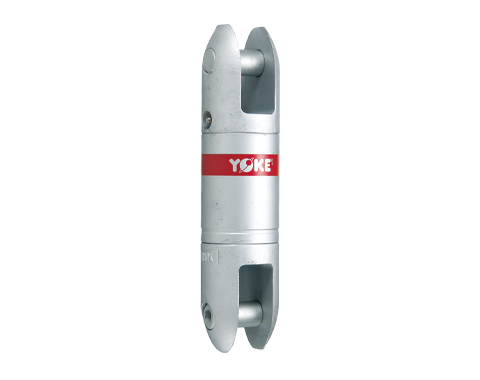

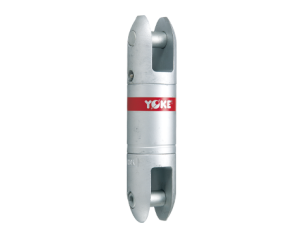

Angular Contact Bearing Swivels - Bullet Style
Item No.8-301
● YOKE Swivels are manufactured using the highest grade of
material available.
● YOKE Swivels are designed with a safety factor of 5:1.
● YOKE Swivels are available in sizes from 0.75 tonnes to 25
tonnes.
● YOKE Swivels are available for wire lines 1/4" to 1 1/4".
● YOKE Swivels are zinc plated for corrosion resistance and
longer life.
● YOKE Swivels are manufactured with grease fittings for
superior performance.
● YOKE Swivels are designed for low starting torque and high
rotation speed.
● All Swivels parts are 100% magnaflux crack detected.
● 20,000 cycle fatigue rate to 1.5 times working load limit.
● All parts with batch number for quality certified and
traceability.

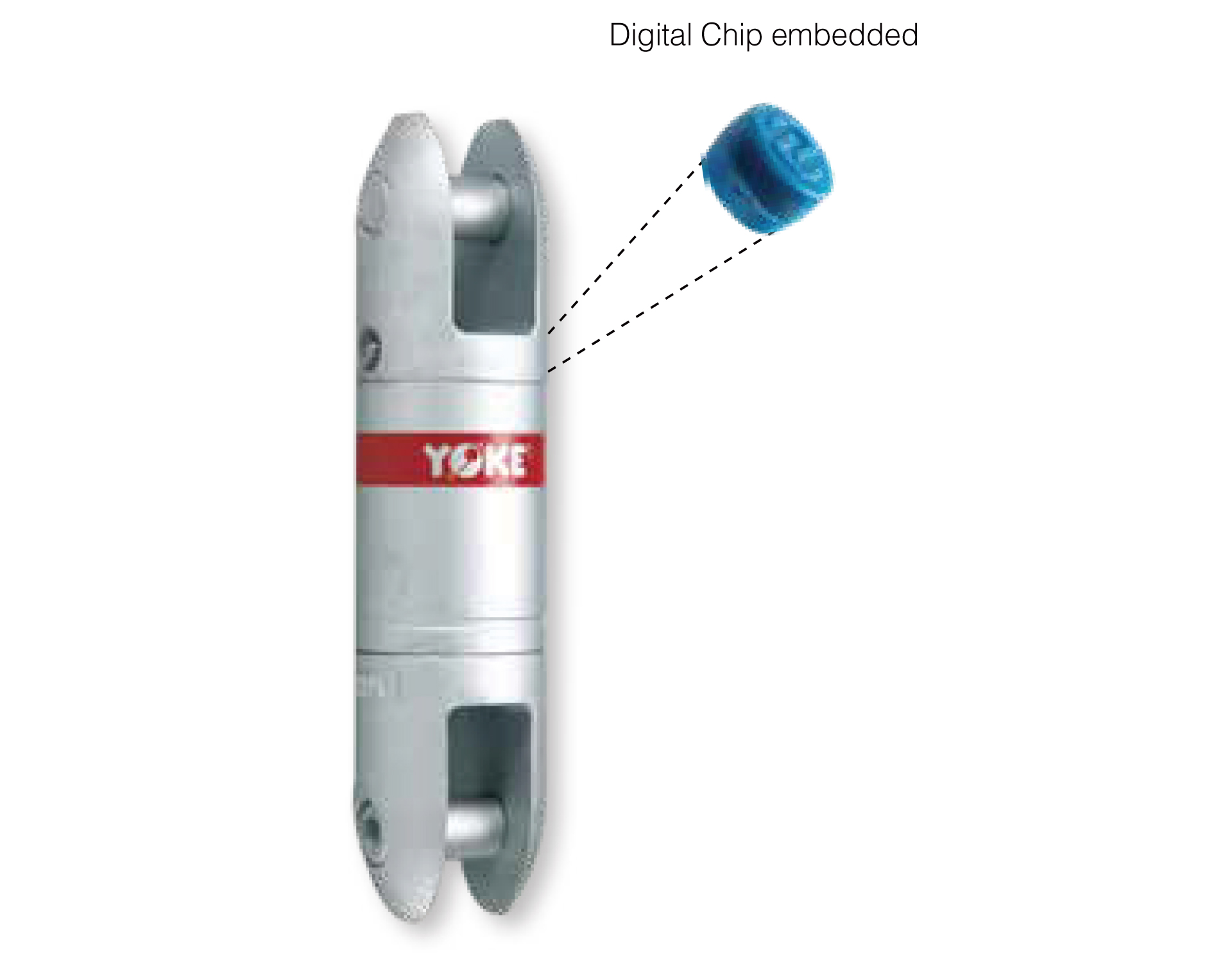

● Digital Chip embedded with Certificate.
material available.
● YOKE Swivels are designed with a safety factor of 5:1.
● YOKE Swivels are available in sizes from 0.75 tonnes to 25
tonnes.
● YOKE Swivels are available for wire lines 1/4" to 1 1/4".
● YOKE Swivels are zinc plated for corrosion resistance and
longer life.
● YOKE Swivels are manufactured with grease fittings for
superior performance.
● YOKE Swivels are designed for low starting torque and high
rotation speed.
● All Swivels parts are 100% magnaflux crack detected.
● 20,000 cycle fatigue rate to 1.5 times working load limit.
● All parts with batch number for quality certified and
traceability.
● Digital Chip embedded with Certificate.

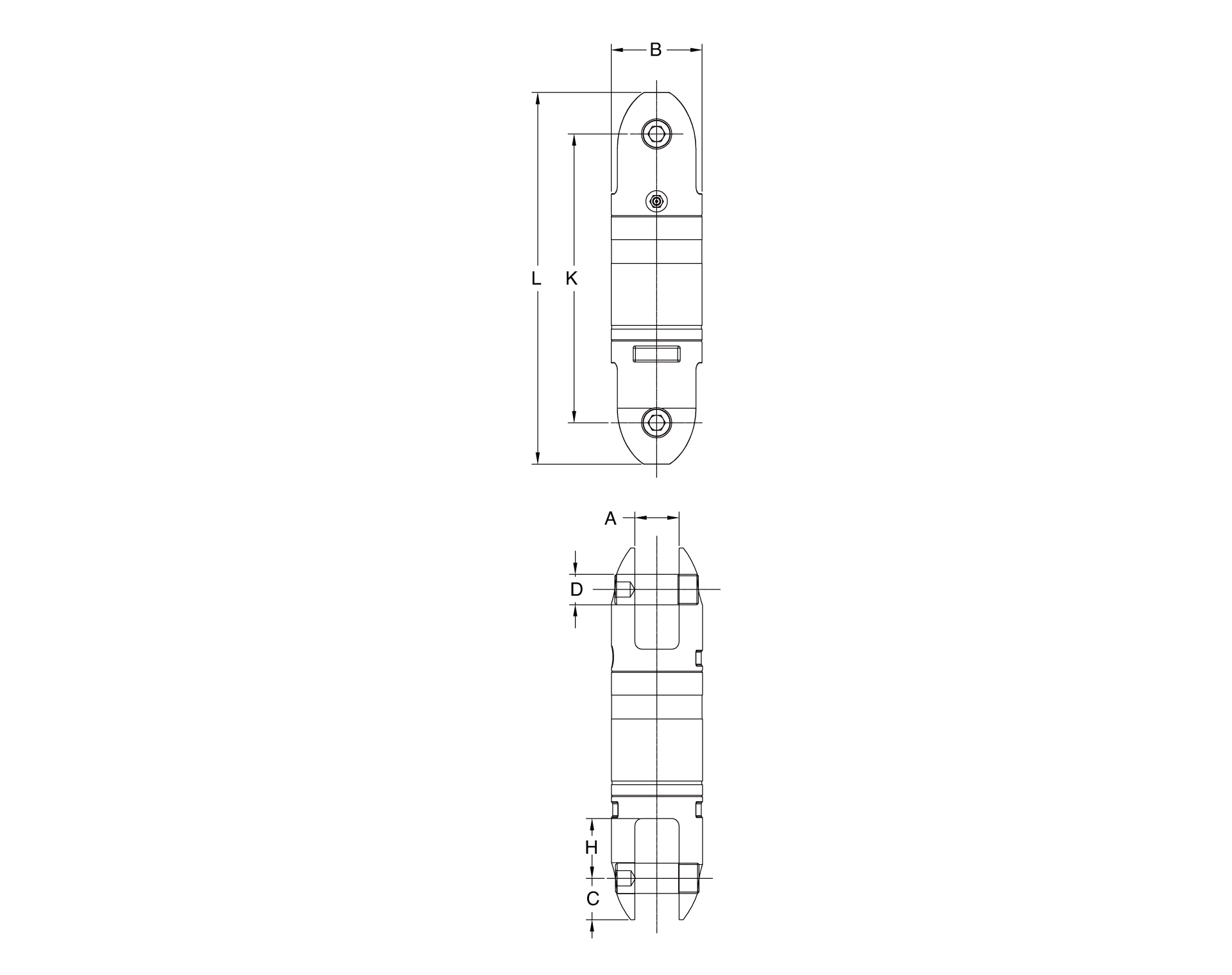

| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | N.W. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | A | B | C | D | H | K | L | kg | ||
| 8-301-0075 | Compare | 0.75 | 6 | 15.0 | 32 | 12.0 | 12.0 | 22.0 | 103 | 126 | 0.5 |
| 8-301-015 | Compare | 1.50 | 10 | 13.0 | 41 | 14.0 | 11.0 | 21.0 | 103 | 132 | 0.8 |
| 8-301-03 | Compare | 3.00 | 13 | 19.0 | 51 | 21.0 | 16.0 | 24.0 | 138 | 179 | 1.7 |
| 8-301-05 | Compare | 5.00 | 16 | 25.0 | 64 | 29.0 | 22.0 | 40.0 | 200 | 259 | 4.0 |
| 8-301-085 | Compare | 8.50 | 19 | 33.0 | 76 | 32.0 | 25.4 | 54.0 | 249 | 313 | 6.0 |
| 8-301-10 | Compare | 10.00 | 22 | 44.0 | 102 | 44.0 | 38.0 | 83.0 | 337 | 425 | 18.2 |
| 8-301-15 | Compare | 15.00 | 25 | 48.0 | 108 | 46.0 | 38.0 | 56.0 | 317 | 408 | 21.0 |
| 8-301-25 | Compare | 25.00 | 32 | 62.0 | 132 | 61.0 | 51.0 | 69.0 | 374 | 495 | 36.5 |
| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | N.W. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | inch | A | B | C | D | H | K | L | lbs | ||
| 8-301-0075 | Compare | 0.75 | 1/2 | 0.59 | 1.26 | 0.47 | 0.39 | 0.87 | 4.06 | 4.96 | 1.1 |
| 8-301-015 | Compare | 1.50 | 5/8 | 0.51 | 1.61 | 0.55 | 0.43 | 0.83 | 4.06 | 5.20 | 1.8 |
| 8-301-03 | Compare | 3.00 | 3/4 | 0.75 | 2.01 | 0.83 | 0.63 | 0.94 | 5.43 | 7.05 | 3.7 |
| 8-301-05 | Compare | 5.00 | 1 | 0.98 | 2.52 | 1.14 | 0.87 | 1.57 | 7.87 | 10.20 | 8.8 |
| 8-301-085 | Compare | 8.50 | 1 1/4 | 1.30 | 2.99 | 1.26 | 0.98 | 2.13 | 9.80 | 12.32 | 13.2 |
| 8-301-10 | Compare | 10.00 | 1 1/2 | 1.73 | 4.02 | 1.73 | 1.50 | 3.27 | 13.27 | 16.73 | 40.1 |
| 8-301-15 | Compare | 15.00 | 2 | 1.89 | 4.25 | 1.81 | 1.50 | 2.20 | 12.48 | 16.06 | 46.3 |
| 8-301-25 | Compare | 25.00 | 2 1/2 | 2.44 | 5.20 | 2.40 | 2.01 | 2.72 | 14.72 | 19.49 | 80.4 |
