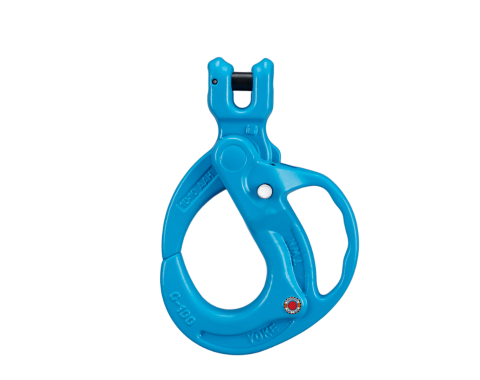

G-100 Clevis Grip Safe Locking Hook
Item No.X-951
• Quenched and Tempered Alloy Steel.
• Manufactured in accordance with EN 1677- 3.
• Manufactured in accordance with ASTM A952/A952M, DIN PAS 1061.
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch.
• Each link is marked with batch number that links to the test certificate with full traceability to raw materials.
• Manufactured in accordance with EN 1677- 3.
• Manufactured in accordance with ASTM A952/A952M, DIN PAS 1061.
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch.
• Each link is marked with batch number that links to the test certificate with full traceability to raw materials.

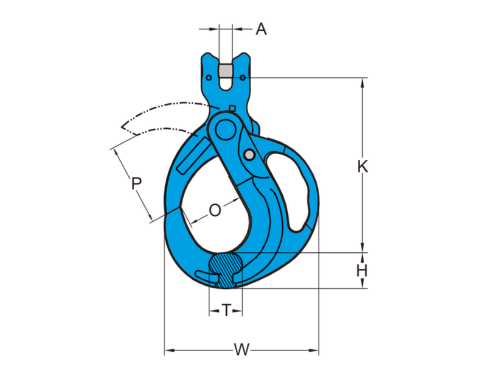

| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | A | H | K | O | P | T | W | ||
| X-951-10 | Compare | 4 | 10 | 12 | 31 | 153 | 49 | 46 | 27 | 137 |
| X-951-13 | Compare | 6.7 | 13 | 15 | 39 | 203 | 64 | 80 | 34 | 174 |
| X-951-16 | Compare | 10 | 16 | 18 | 47 | 244 | 78 | 114 | 39 | 212 |
| X-951-20 | Compare | 16 | 20 | 24 | 55 | 312 | 92 | 127 | 54 | 251 |
| X-951-22 | Compare | 19 | 22 | 24 | 59 | 304 | 98 | 151 | 56 | 258 |
| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| lbs | inch | A | H | K | O | P | T | W | ||
| X-951-10 | Compare | 8800 | 45724 | 0.47 | 1.22 | 6.02 | 1.93 | 1.81 | 1.06 | 5.39 |
| X-951-13 | Compare | 15000 | 45659 | 0.59 | 1.54 | 7.99 | 2.52 | 3.15 | 1.34 | 6.85 |
| X-951-16 | Compare | 22600 | 45785 | 0.71 | 1.85 | 9.61 | 3.07 | 4.49 | 1.54 | 8.35 |
| X-951-20 | Compare | 35300 | 45720 | 0.94 | 2.17 | 12.28 | 3.62 | 5 | 2.13 | 9.88 |
| X-951-22 | Compare | 42700 | 45846 | 0.94 | 2.32 | 11.97 | 3.86 | 5.94 | 2.2 | 10.16 |
