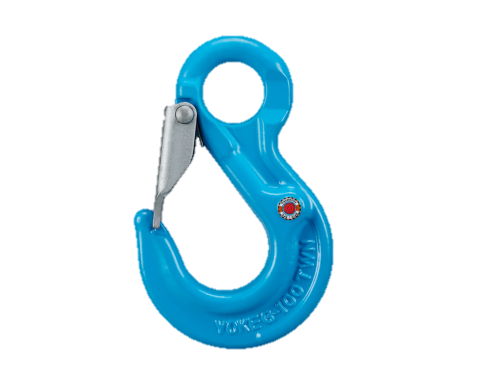

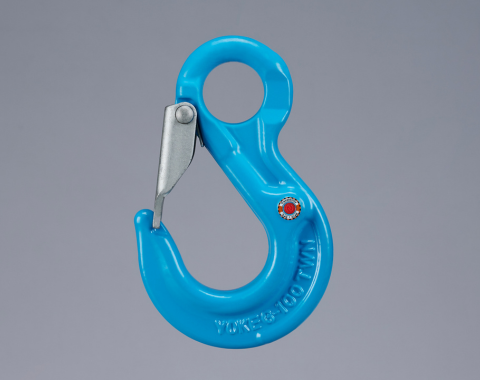

G-100 Eye Sling Hook
Item No.X-044/S
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80 products.
• Manufactured in accordance with EN 1677- 2 and ASME B30.26, ASME B30.10, PAS1061.
• Certified by DGUV GS-OA-15-05
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the
WLL.
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch.
• At least 25% greater WLL than traditional G80 products.
• Manufactured in accordance with EN 1677- 2 and ASME B30.26, ASME B30.10, PAS1061.
• Certified by DGUV GS-OA-15-05
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the
WLL.
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch.
| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | A | D | H | K | P1 | T | ||
| X-044/S-06 | Compare | 1.4 | 6 | 20 | 10 | 19 | 80 | 23 | 17 |
| X-044/S-07 | Compare | 2.5 | 7,8 | 25 | 12 | 22 | 98 | 28 | 20 |
| X-044/S-10 | Compare | 4 | 10 | 33 | 15 | 30 | 122 | 36 | 23 |
| X-044/S-13 | Compare | 6.7 | 13 | 40 | 18 | 38 | 152 | 40 | 28 |
| X-044/S-16 | Compare | 10 | 16 | 51 | 22 | 44 | 185 | 44 | 36 |
| X-044/S-20 | Compare | 16 | 20 | 61 | 27 | 64 | 230 | 54 | 48 |
| X-044/S-22 | Compare | 19 | 22 | 51 | 31 | 61 | 245 | 76 | 52 |
| X-044/S-26 | Compare | 26.5 | 26 | 65 | 34 | 77 | 285 | 77 | 61 |
| X-044/S-32 | Compare | 40 | 32 | 91 | 41 | 79 | 358 | 114 | 65 |
| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|
| lbs | inch | A | D | H | K | P1 | T | ||
| X-044/S-06 | Compare | 3200 | 7/32 | 0.79 | 0.39 | 0.75 | 3.15 | 0.91 | 0.67 |
| X-044/S-07 | Compare | 5700 | 1/4-5/16 | 0.98 | 0.47 | 0.87 | 3.86 | 1.1 | 0.79 |
| X-044/S-10 | Compare | 8800 | 45724 | 1.3 | 0.59 | 1.18 | 4.8 | 1.42 | 0.91 |
| X-044/S-13 | Compare | 15000 | 45659 | 1.57 | 0.71 | 1.5 | 5.98 | 1.57 | 1.1 |
| X-044/S-16 | Compare | 22600 | 45785 | 2.01 | 0.87 | 1.73 | 7.28 | 1.73 | 1.42 |
| X-044/S-20 | Compare | 35300 | 45720 | 2.4 | 1.06 | 2.52 | 9.06 | 2.13 | 1.89 |
| X-044/S-22 | Compare | 42700 | 45846 | 2.01 | 1.22 | 2.4 | 9.65 | 2.99 | 2.05 |
| X-044/S-26 | Compare | 59700 | 1 | 2.56 | 1.34 | 3.03 | 11.22 | 3.03 | 2.4 |
| X-044/S-32 | Compare | 90400 | 1-1/4 | 3.58 | 1.61 | 3.11 | 14.09 | 4.49 | 2.56 |
