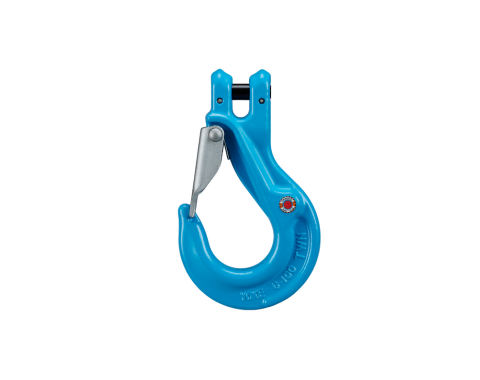

G-100 Clevis Sling Hook

Item No.X-043/S

• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80 products.
• Manufactured in accordance with EN 1677- 2 and ASME B30.26, ASME B30.10, PAS1061.
• Certified by DGUV GS-OA-15-05
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch.

Compare Datasheet

Metric (mm)
Imperial (inch)

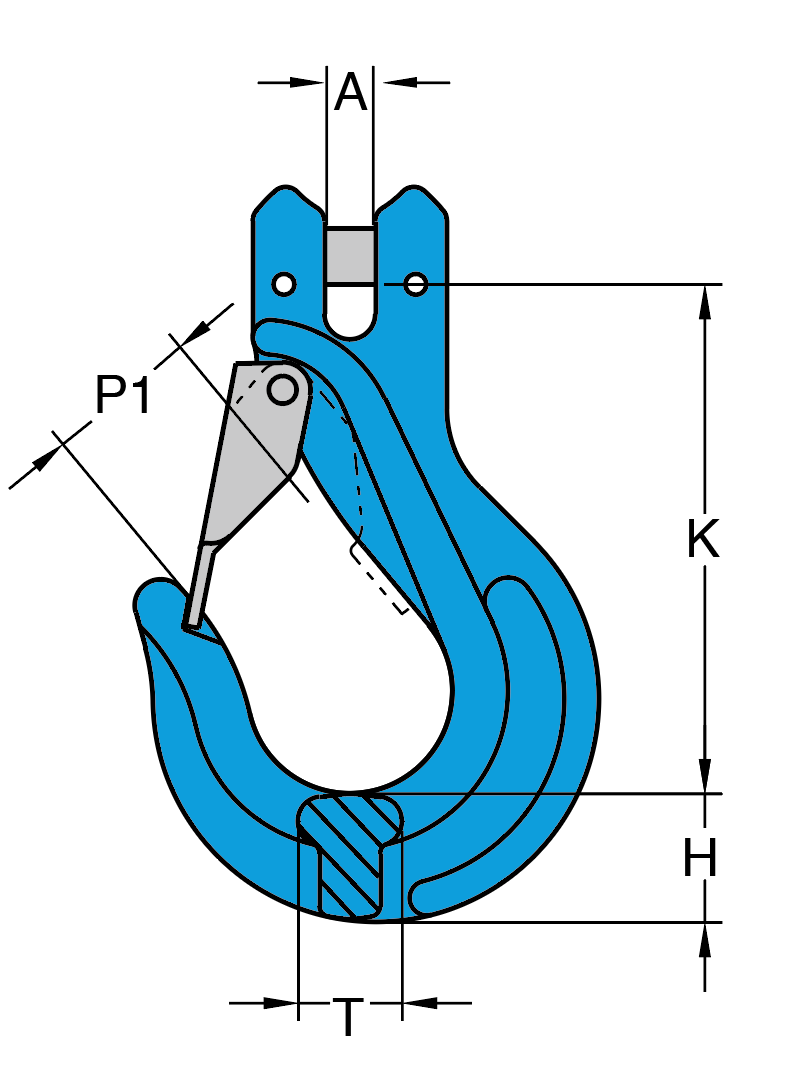

Item NO.	Compare	Working Load Limit	For Grade 100 Chain	Dimensions
		tonnes	mm	A	H	K	P1	T
X-043/S-06	Compare	1.4	6	7	18	79	23	15
X-043/S-07	Compare	2.5	7,8	10	22	98	27	18
X-043/S-10	Compare	4	10	12	30	122	34	24
X-043/S-13	Compare	6.7	13	15	37	147	44	30
X-043/S-16	Compare	10	16	18	41	166	48	39
X-043/S-20	Compare	16	20	24	64	207	57	48
X-043/S-22	Compare	19	22	24	61	217	75	52
X-043/S-06	Compare	1.4	6	7	18	79	23	15
X-043/S-07	Compare	2.5	7,8	10	22	98	27	18

Item NO.	Compare	Working Load Limit	For Grade 100 Chain	Dimensions
		lbs#ibest*371	inch#ibest*390	A#ibest*137	H#ibest*142	K#ibest*149	P1#ibest*377	T#ibest*153
X-043/S-06	Compare	3200	7/32	0.28	0.71	3.11	0.91	0.59
X-043/S-07	Compare	5700	1/4 - 5/16	0.39	0.87	3.86	1.06	0.71
X-043/S-10	Compare	8800	3/8	0.47	1.18	4.8	1.34	0.94
X-043/S-13	Compare	15000	1/2	0.59	1.46	5.79	1.73	1.18
X-043/S-16	Compare	22600	5/8	0.71	1.61	6.54	1.89	1.54
X-043/S-20	Compare	35300	3/4	0.94	2.52	8.15	2.24	1.89
X-043/S-22	Compare	42000	7/8	0.94	2.4	8.54	2.95	2.05
