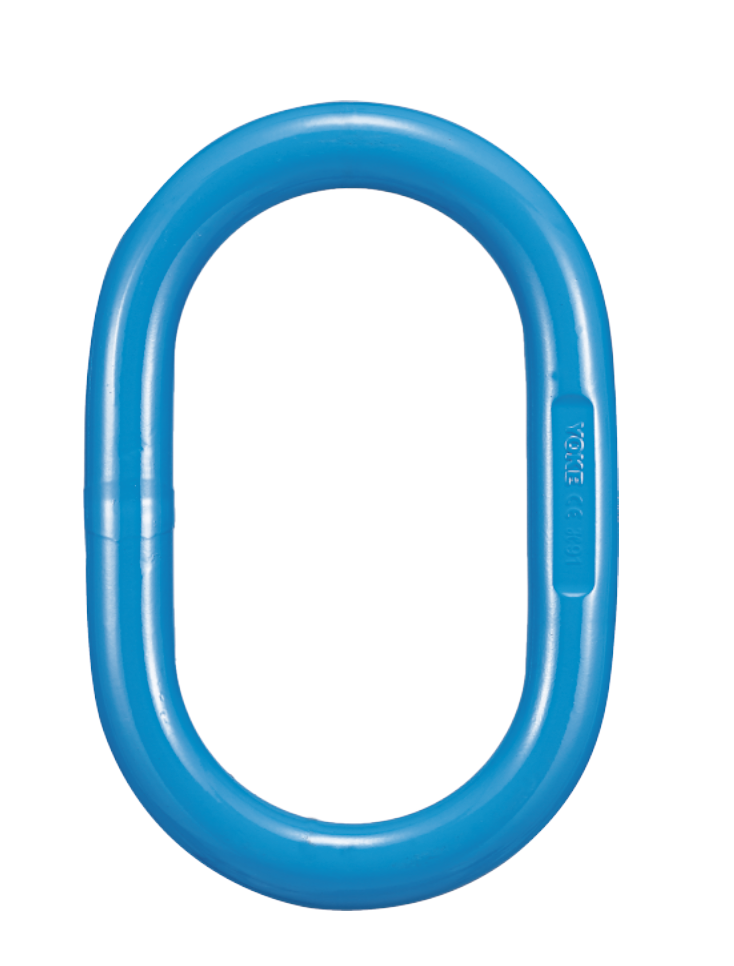

G-100 Welded Master Link
Item No.X-001
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80 products.
• Manufactured in accordance with ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4 and OSHA 1910.184.
• Certified by DGUV GS-HM-37.
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 5:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature at a minimum of 400°C.

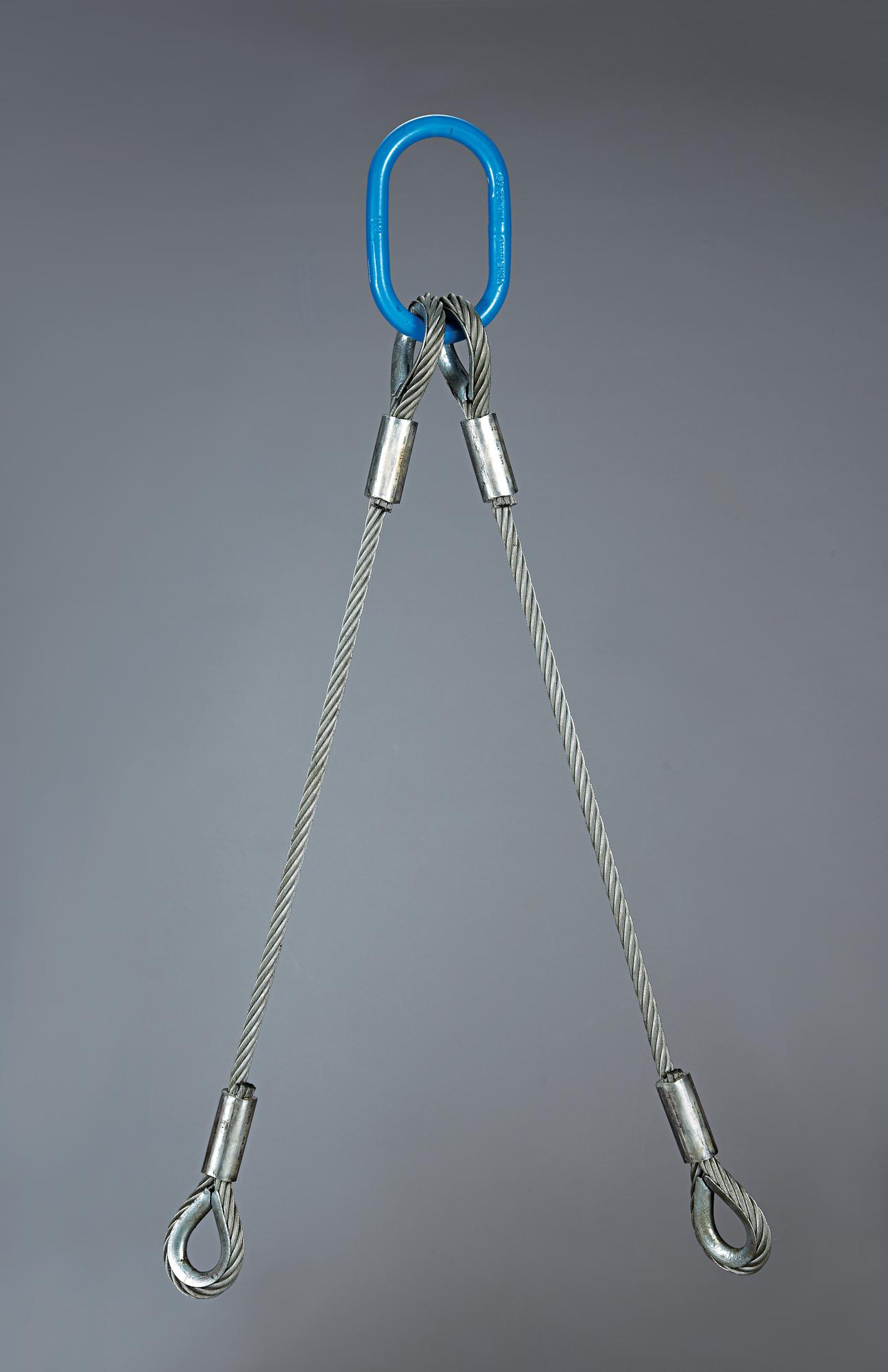

• Welded Master Link designed for 1-2 legs Chain, Wire Rope and Webbing Slings.
• At least 25% greater WLL than traditional G80 products.
• Manufactured in accordance with ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4 and OSHA 1910.184.
• Certified by DGUV GS-HM-37.
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 5:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature at a minimum of 400°C.
• Welded Master Link designed for 1-2 legs Chain, Wire Rope and Webbing Slings.

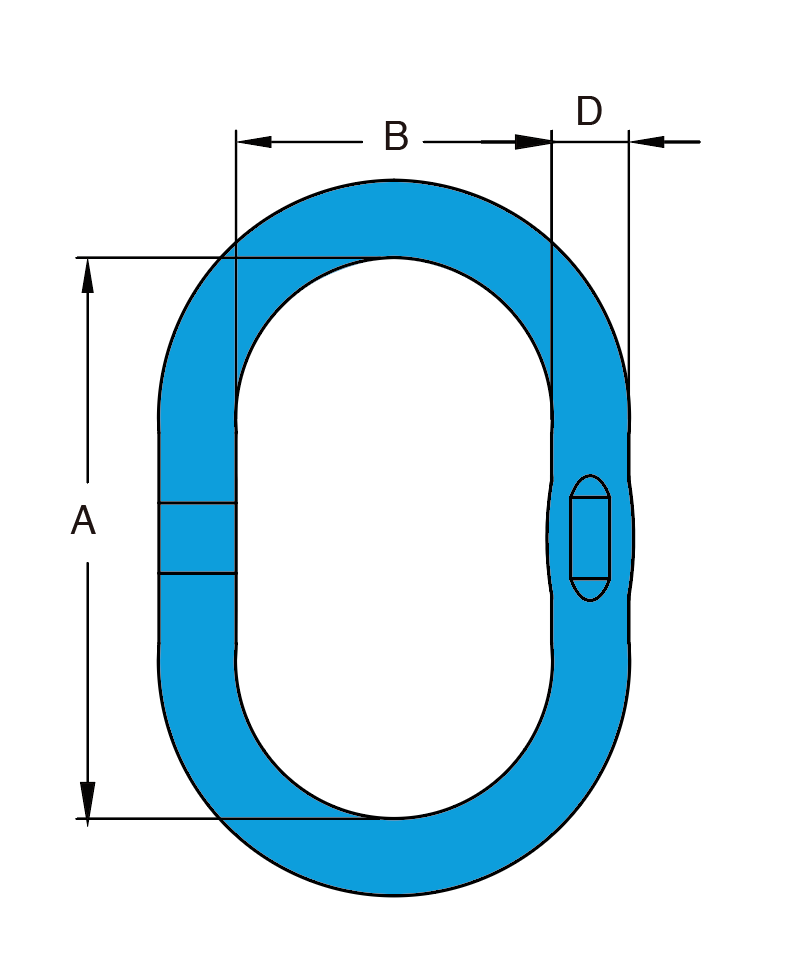

| Item NO. | Compare | Code No | For Grade 100 Chain | WLL β 0-45° | Proof Load | Used to single hook according to DlN 15401 NO. | Dimensions | ||
|---|---|---|---|---|---|---|---|---|---|
| 1-leg | 2-leg | tonnes | kN | A | D | ||||
| X-001-13 | Compare | AD-13 | 6,7,8 | 6 | 2.8 | 2.8 | 2.5 | 120 | 13 |
| X-001-16 | Compare | AD-16 | 10 | 7,8 | 4 | 4 | 6 | 160 | 16 |
| X-001-19 | Compare | AD-19 | 13 | 10 | 6.7 | 6.7 | 6 | 160 | 19 |
| X-001-22 | Compare | AD-22 | 13 | 10 | 8.9 | 8.9 | 8 | 180 | 22 |
| X-001-25 | Compare | AD-25 | 16 | 13 | 11.5 | 11.5 | 10 | 210 | 25 |
| X-001-251 | Compare | AD-251 | 16 | 13 | 11.5 | 11.5 | 16 | 275 | 25 |
| X-001-28 | Compare | AD-28 | 16 | 13 | 13 | 13 | 16 | 275 | 28 |
| X-001-281 | Compare | AD-281 | 16 | 13 | 13 | 13 | 8 | 190 | 28 |
| X-001-32 | Compare | AD-32 | 20 | 16 | 17.1 | 17.1 | 16 | 275 | 32 |
| X-001-36 | Compare | AD-36 | 26 | 22 | 24 | 24 | 20 | 285 | 36 |
| X-001-40 | Compare | AD-40 | 26 | 22 | 28.1 | 28.1 | 20 | 300 | 40 |
| X-001-45 | Compare | AD-45 | 26 | 26 | 38.3 | 38.3 | 25 | 340 | 45 |
| X-001-50 | Compare | AD-50 | 32 | 26 | 45 | 45 | 32 | 350 | 50 |
| Item NO. | Compare | Code No | For Grade 100 Chain | WLL β 0-45° | Proof Load | Used to single hook according to DlN 15401 NO. | Dimensions | |
|---|---|---|---|---|---|---|---|---|
| 1-leg | lbs | lbs | A | D | ||||
| X-001-13 | Compare | 7/32-5/16 | 7/32 | 6100 | 15250 | 2.5 | 4.72 | 0.51 |
| X-001-16 | Compare | 45724 | 1/4-5/16 | 8800 | 22000 | 6 | 6.3 | 0.63 |
| X-001-19 | Compare | 45659 | 45724 | 14700 | 36750 | 6 | 6.3 | 0.75 |
| X-001-22 | Compare | 45659 | 45724 | 19600 | 49000 | 8 | 7.09 | 0.87 |
| X-001-25 | Compare | 45785 | 45659 | 25300 | 63250 | 10 | 8.27 | 0.98 |
| X-001-251 | Compare | 45785 | 45659 | 25300 | 63250 | 16 | 10.83 | 0.98 |
| X-001-28 | Compare | 45785 | 45659 | 28600 | 71500 | 16 | 10.83 | 1.1 |
| X-001-281 | Compare | 45785 | 45659 | 28600 | 71500 | 8 | 7.48 | 1.1 |
| X-001-32 | Compare | 45720 | 45785 | 37600 | 94000 | 16 | 10.83 | 1.26 |
| X-001-36 | Compare | 1 | 45846 | 52900 | 132250 | 20 | 11.22 | 1.42 |
| X-001-40 | Compare | 1 | 45846 | 61900 | 154750 | 20 | 11.81 | 1.57 |
| X-001-45 | Compare | 1 | 1 | 84400 | 211000 | 25 | 13.39 | 1.77 |
| X-001-50 | Compare | 1-1/4 | 1 | 99200 | 248000 | 32 | 13.78 | 1.97 |
