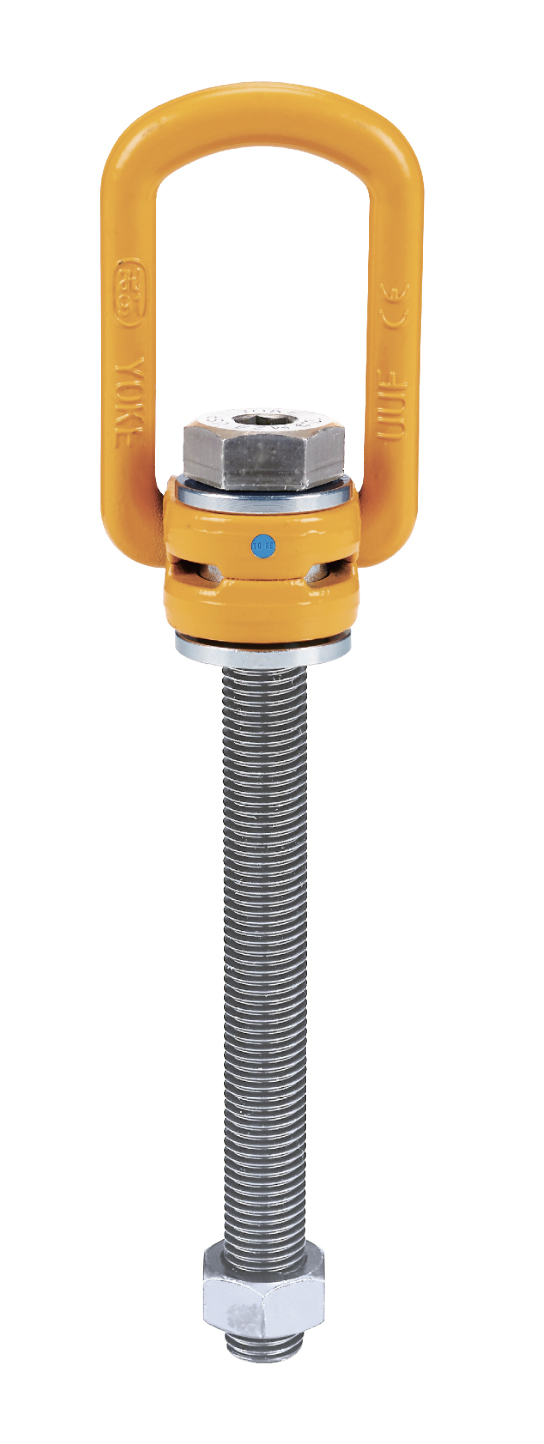

Lifting Point, Long Bolt

Item No.8-211L

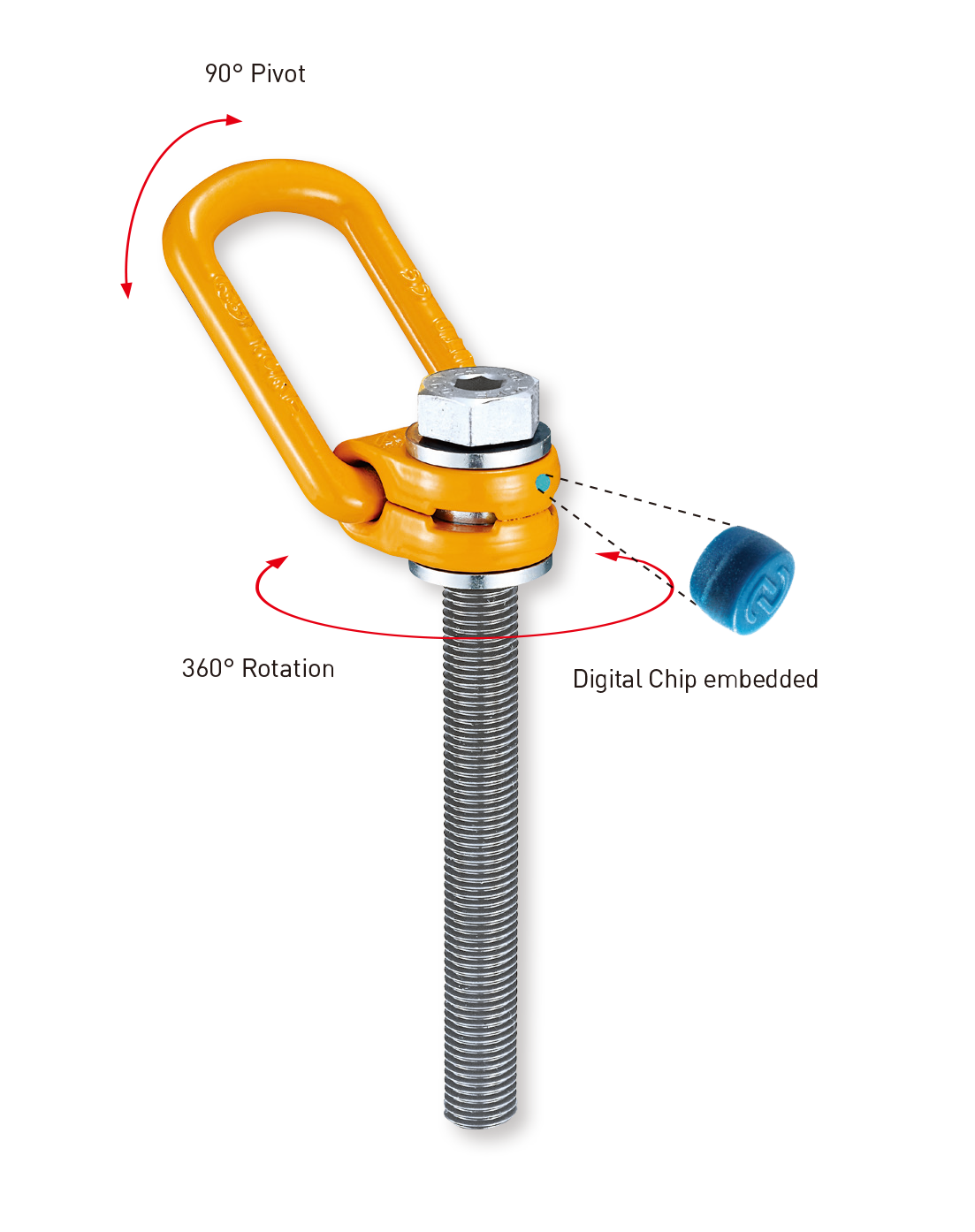

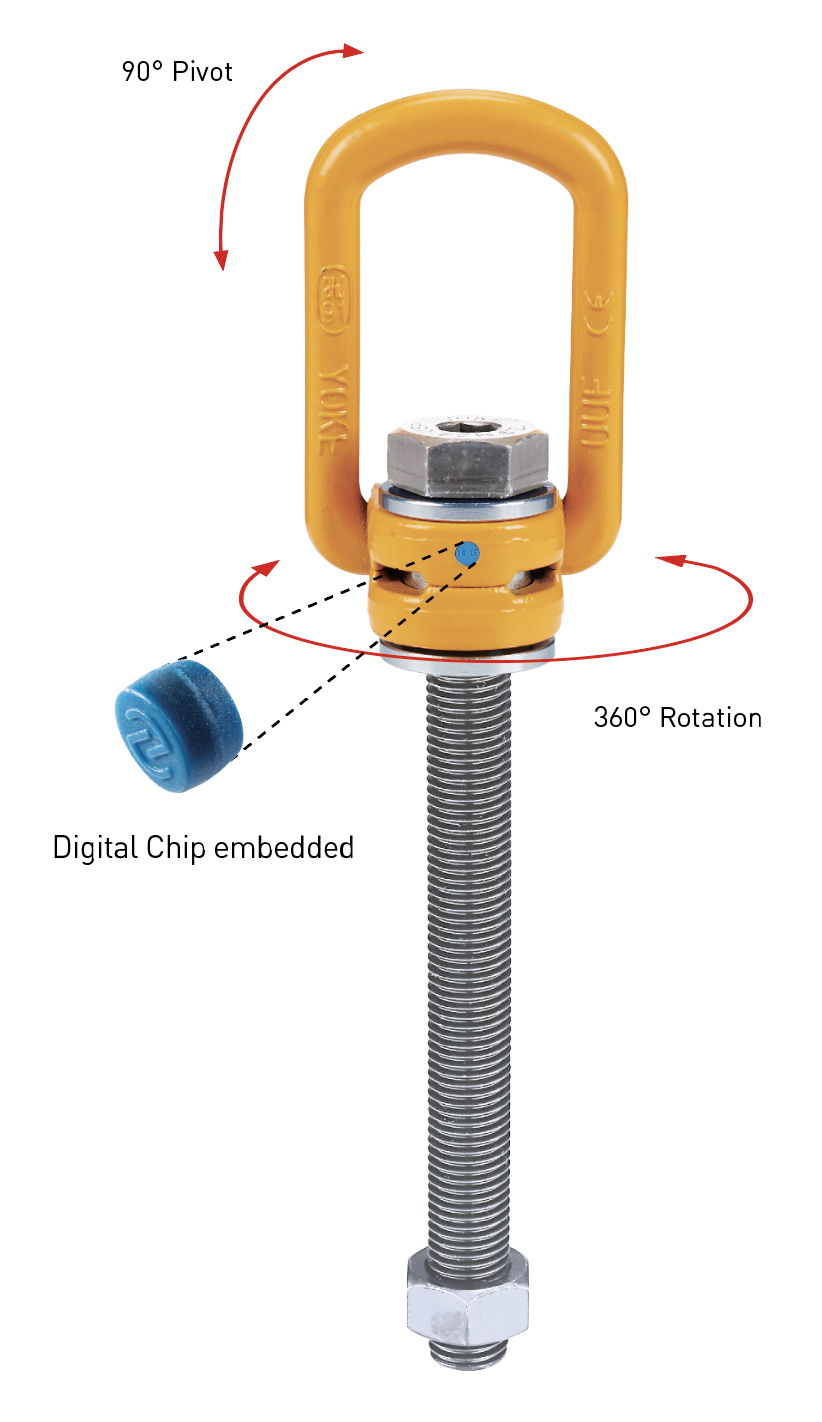

• Rotates through 360° and pivots 90°.
• Manufactured from alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolts are Metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• Quick and simple assembly, just a tapped hole is required.

Compare Datasheet

Metric (mm)

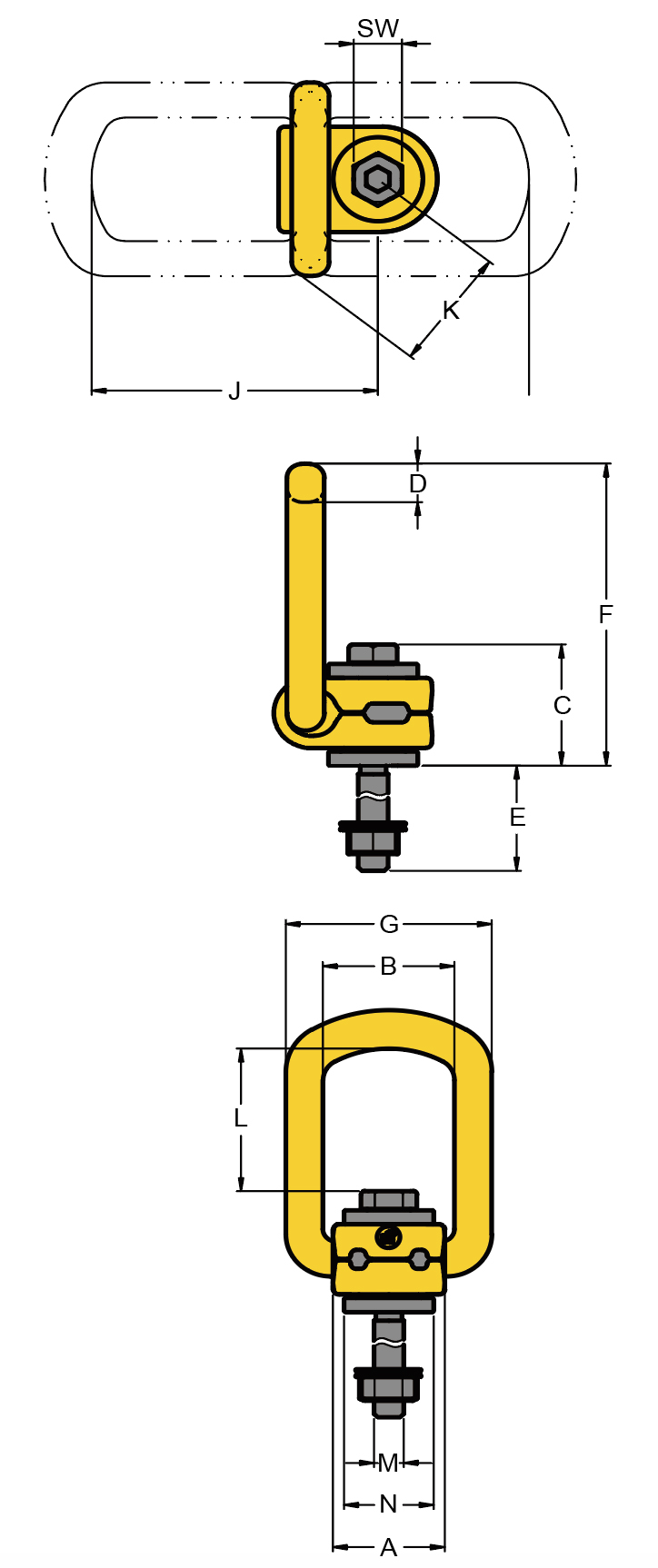

Item NO.	file download	Compare	Working Load Limit	Thread version			Dimensions														Torque in	N.W.
			tonnes	M	E	Pitch DIN13	A	B	C	D	F	G	H	I	J	K	L	N	S	SW	Nm	kg
8-211-200/385L	Download	Compare	20.0	M 48	295	5.00	95	104	120	36	260	158	90	126	230	99	104	98	27	75	2000	15.5
8-211-003/105L	Download	Compare	0.3	M 8	76	1.25	30	35	35	11	86	55	29	41	77	34	41	24	6	13	30	0.4
8-211-006/125L	Download	Compare	0.6	M 10	96	1.50	30	35	36	11	86	55	29	42	78	34	40	24	6	17	60	0.4
8-211-010/150L	Download	Compare	1.0	M 12	114	1.75	33	38	44	14	99	57	36	44	89	38	42	31	8	19	100	0.5
8-211-015/185L	Download	Compare	1.5	M 16	149	2.00	33	38	46	14	99	57	36	45	89	38	40	31	10	24	150	0.7
8-211-150/350L	Download	Compare	15.0	M 42	264	4.50	95	104	112	36	258	158	86	127	229	98	110	98	24	65	1500	13.5
8-211-100/350L	Download	Compare	10.0	M 42	272	4.50	77	85	104	27	225	124	78	113	204	79	94	69	24	65	1000	7.9
8-211-080/300L	Download	Compare	8.0	M 36	222	4.00	77	85	101	27	225	124	78	112	205	80	97	69	22	55	800	6.9
8-211-050/340L	Download	Compare	5.0	M 30	279	3.50	60	65	81	23	170	99	62	80	153	64	67	59	17	46	500	4.3
8-211-040/265L	Download	Compare	4.0	M 24	221	3.00	50	54	59	16	143	82	44	74	132	53	67	45	14	36	400	2.0
8-211-025/230L	Download	Compare	2.5	M 20	187	2.50	50	54	56	16	142	82	43	74	132	53	70	49	12	30	250	1.7
