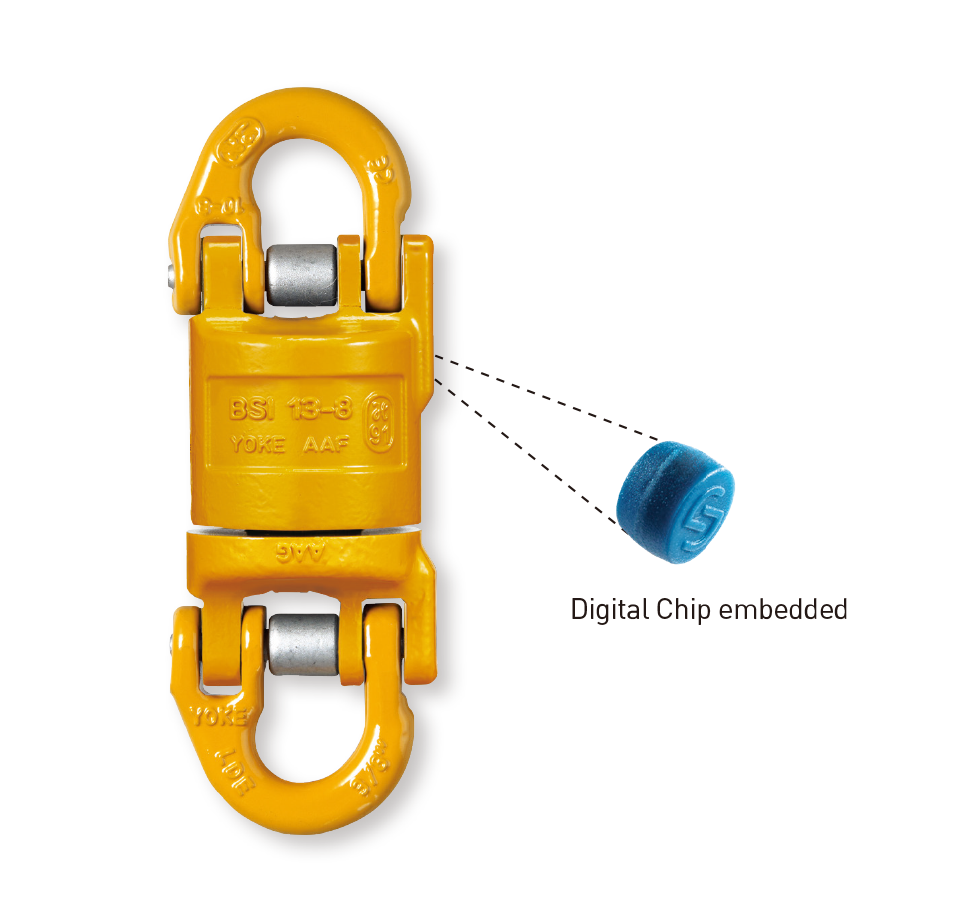

Insulated Swivel Connectors

Item No.8-123

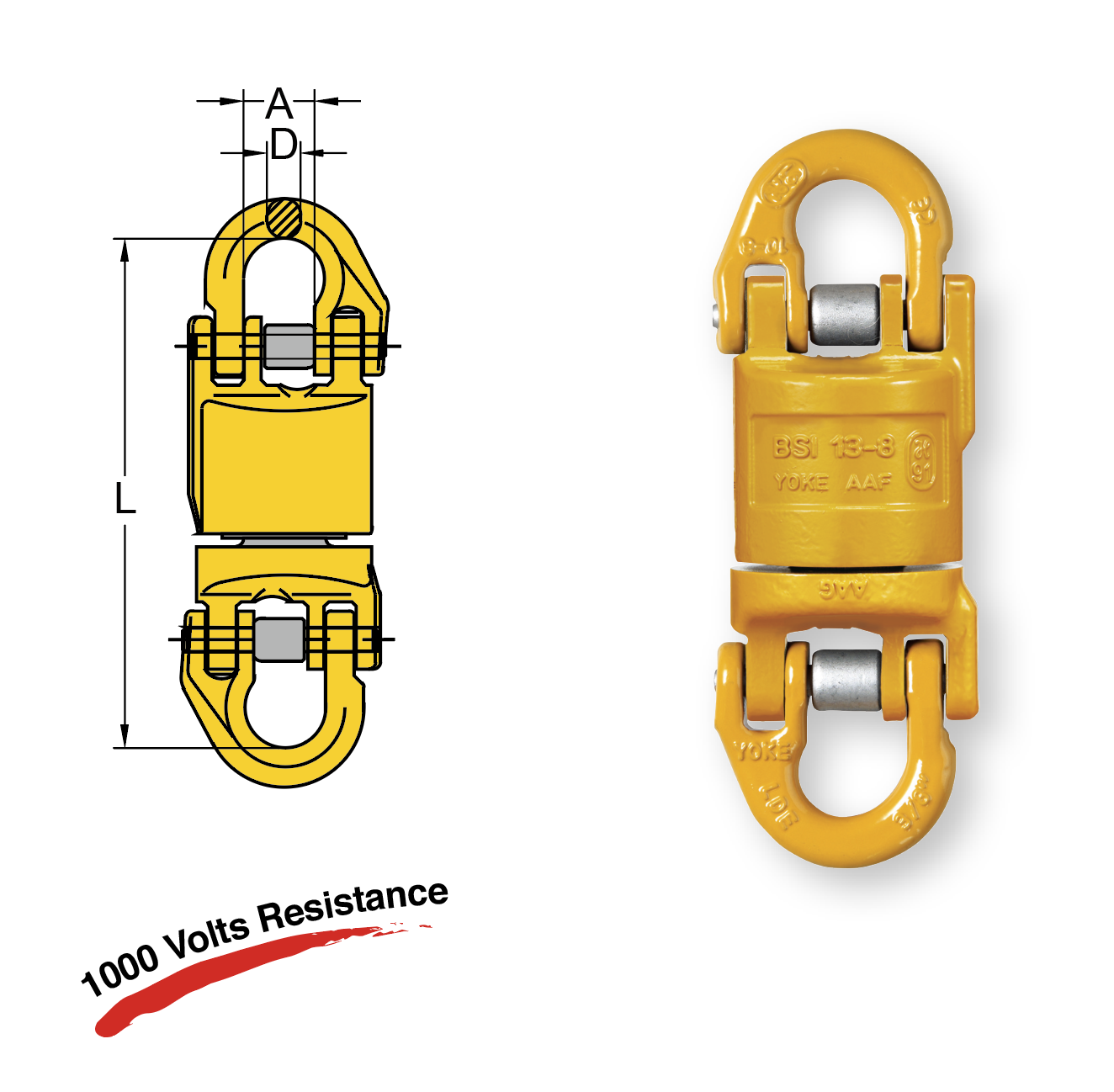

• Individually tested to resist 1000 Volts insulated with Test Certificate.
• Design for protection Winch of overhead crane during welding operations on suspended loads.
Compare Datasheet

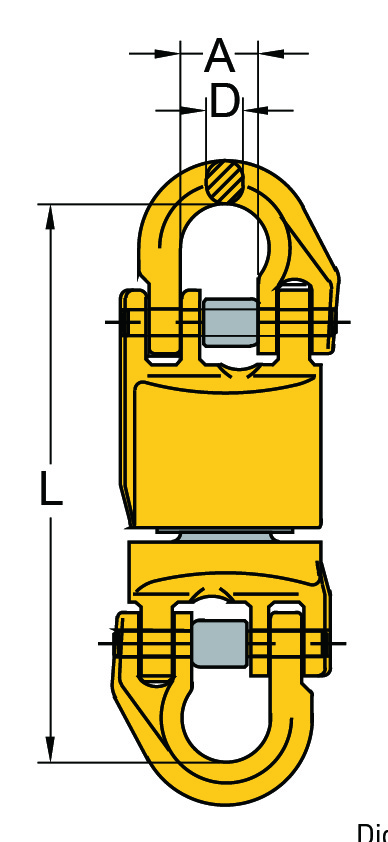

Item NO. Compare Working Load LimitFor Grade 80 ChainDimensionsN.W.
tonnesmmADLkg
8-123-07 Compare 2.00 7, 8 18 9 131 0.7
8-123-10 Compare 3.15 10 25 11 162 1.5
8-123-13 Compare 5.30 13 30 16 214 3.2
8-123-16 Compare 8.00 16 36 19 243 5.4
8-123-20 Compare 12.50 18, 20 42 22 285 9.0
Item NO. Compare Working Load LimitFor Grade 80 ChainDimensionsN.W.
lbs#ibest*371inch#ibest*428A#ibest*137D#ibest*140L#ibest*150lbs#ibest*413
8-123-07 Compare 4,500 1/4-5/16 0.71 0.35 5.16 1.5
8-123-10 Compare 7,100 3/8 0.99 0.50 6.38 3.3
8-123-13 Compare 12,000 1/2 1.19 0.62 8.43 7.3
8-123-16 Compare 18,100 5/8 1.42 0.75 9.57 12.8
8-123-20 Compare 28,300 3/4 1.65 0.87 11.22 20.3
