DA-001

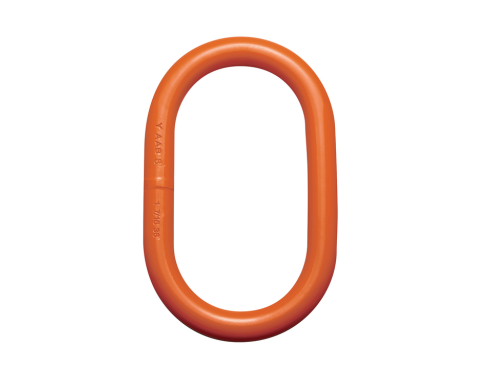

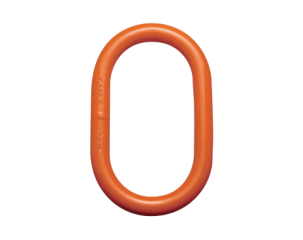

Item No.DA-001

● Welded alloy steel quenched and tempered.
● Tested and manufactured in accordance with DNV-ST-E271, DNV-ST-E273 and EN 1677-4.
● Charpy tested in accordance with DNV-ST-E271.
● Certified by DNV-ST-E271 and DNV-ST-E273.
● Design factor 5:1.
● Proof Load tested to 2.5 times the Working Load Limit (WLL).
● Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit (WLL).
● Magnaflux crack detection is performed 100% on each batch.
● Charpy test of 42 joules (31ft-lb) at -40°C (-40°F) for normal section.
● Charpy test of 27 joules (20 ft-lb) at -40°C (-40°F) for welded section.

Compare Datasheet

Metric (mm)
Imperial (inch)

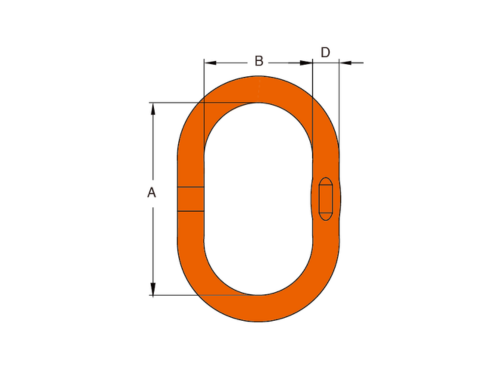

Item NO.	Compare	Code No#ibest*123	WLL β 0-45°	Used to single hook according to DlN 15401 NO.#ibest*400	Dimensions
			tonnes		A	B	D
DA-001-13	Compare	FD-13	2.8	2.5	120	60	13
DA-001-16	Compare	FD-16	4	6	160	90	16
DA-001-19	Compare	FD-19	6.7	6	160	90	19
DA-001-22	Compare	FD-22	8.9	8	180	100	22
DA-001-25	Compare	FD-25	11.5	10	210	115	25
DA-001-28	Compare	FD-28	13	16	275	145	28
DA-001-32	Compare	FD-32	17.1	16	275	145	32
DA-001-36	Compare	FD-36	24	20	285	155	36
DA-001-40	Compare	FD-40	28.1	20	300	160	40
DA-001-45	Compare	FD-45	38.3	25	340	180	45
DA-001-50	Compare	FD-50	45	32	350	195	50

Item NO.	Compare	Code No#ibest*123	WLL β 0-45°	Used to single hook according to DlN 15401 NO.#ibest*400	Dimensions
			lbs#ibest*397		A#ibest*137	B#ibest*138	D#ibest*140
DA-001-13	Compare	FD-13	6100	2.5	4.72	2.36	0.51
DA-001-16	Compare	FD-16	8800	6	6.3	3.54	0.63
DA-001-19	Compare	FD-19	14700	6	6.3	3.54	0.75
DA-001-22	Compare	FD-22	19600	8	7.09	3.94	0.87
DA-001-25	Compare	FD-25	25300	10	8.27	4.53	0.98
DA-001-28	Compare	FD-28	28600	16	10.83	5.71	1.1
DA-001-32	Compare	FD-32	37600	16	10.83	5.71	1.26
DA-001-36	Compare	FD-36	52900	20	11.22	6.1	1.42
DA-001-40	Compare	FD-40	61900	20	11.81	6.3	1.57
DA-001-45	Compare	FD-45	84400	25	13.39	7.09	1.77
DA-001-50	Compare	FD-50	99200	32	13.78	7.68	1.97
