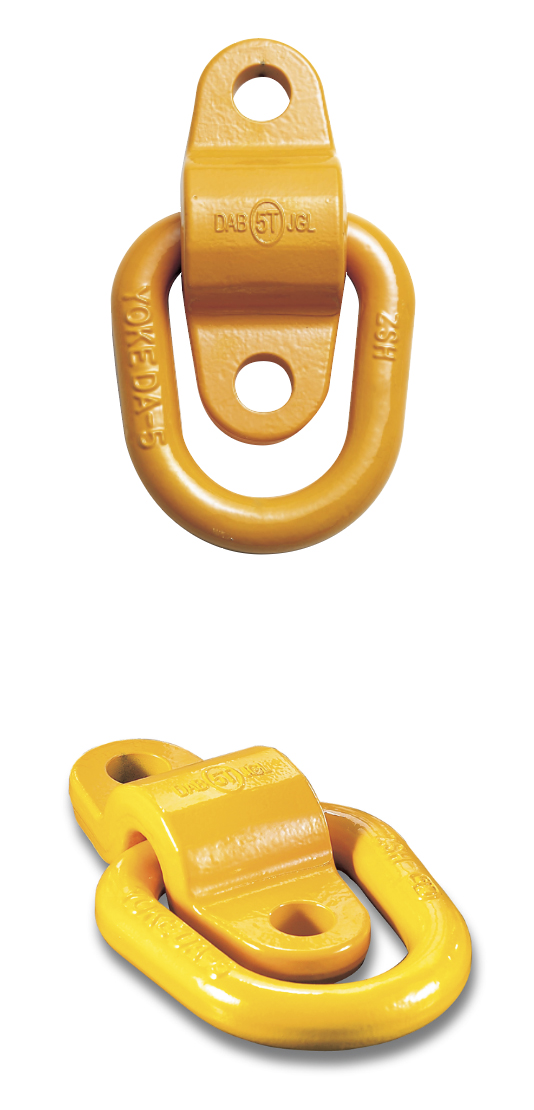

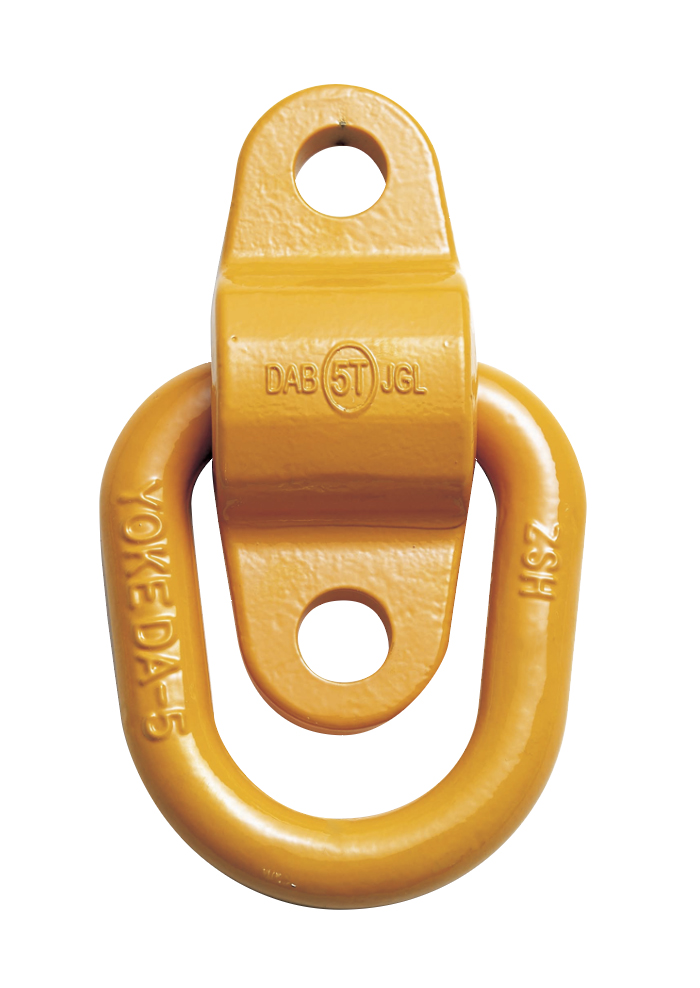

• Pivots 180° and allows side load lifting.
• Manufactured from forged alloy steel, quenched and tempered.
• Manufactured and tested in accordance with EN 1677-1.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts are traceable to Test Certification.
• Supplied without bolts; usage of Grade 10.9 or Grade 12.9 bolts is recommended.
• Proof tested to 2.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.

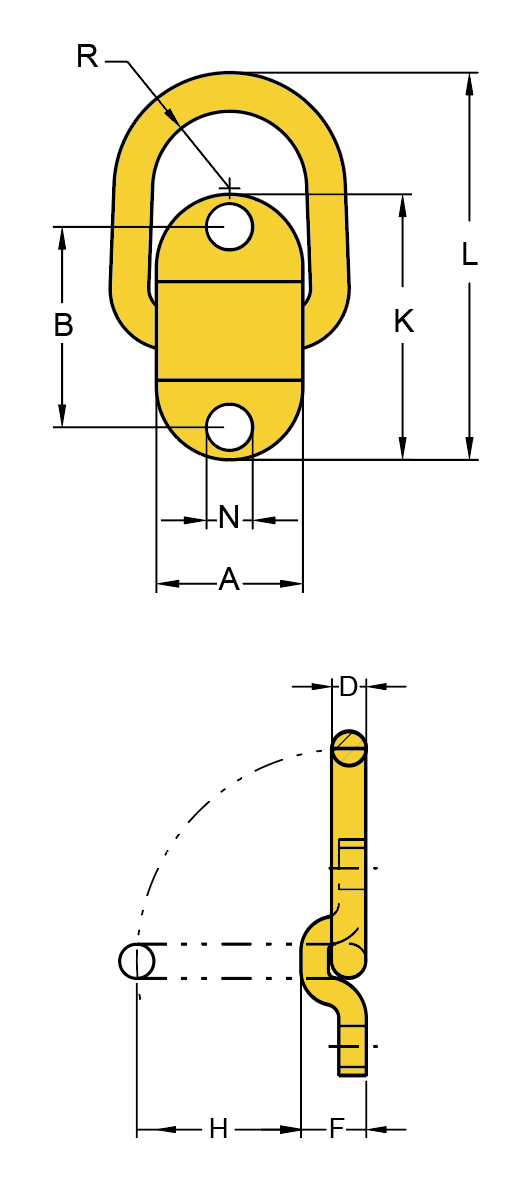

| Item NO. | Compare | Working Load Limit | Dimensions | N.W. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | B | D | F | H | K | L | N | R | kg | ||
| 8-058-5T | Compare | 5.0 | 64 | 117 | 22 | 46 | 74 | 160 | 206 | 23 | 33 | 2.5 |
| 8-058-3T | Compare | 3.0 | 58 | 84 | 17 | 34 | 53 | 114 | 147 | 18 | 29 | 1.1 |
| 8-058-1T | Compare | 1.0 | 50 | 72 | 14 | 27 | 55 | 98 | 139 | 14 | 24 | 0.7 |
| Item NO. | Compare | Working Load Limit | Dimensions | N.W. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs#ibest*371 | A#ibest*137 | B#ibest*138 | D#ibest*140 | F#ibest*164 | H#ibest*142 | K#ibest*149 | L#ibest*150 | N#ibest*151 | R#ibest*145 | lbs#ibest*413 | ||
| 8-058-3T | Compare | 6600 | 2.28 | 3.31 | 0.67 | 1.34 | 2.09 | 4.49 | 5.79 | 0.71 | 1.14 | 2.4 |
| 8-058-1T | Compare | 2200 | 1.97 | 2.83 | 0.55 | 1.06 | 2.17 | 3.86 | 5.47 | 0.55 | 0.94 | 1.5 |
| 8-058-5T | Compare | 11000 | 2.52 | 4.61 | 0.87 | 1.81 | 2.91 | 6.3 | 8.11 | 0.91 | 1.3 | 5.5 |
