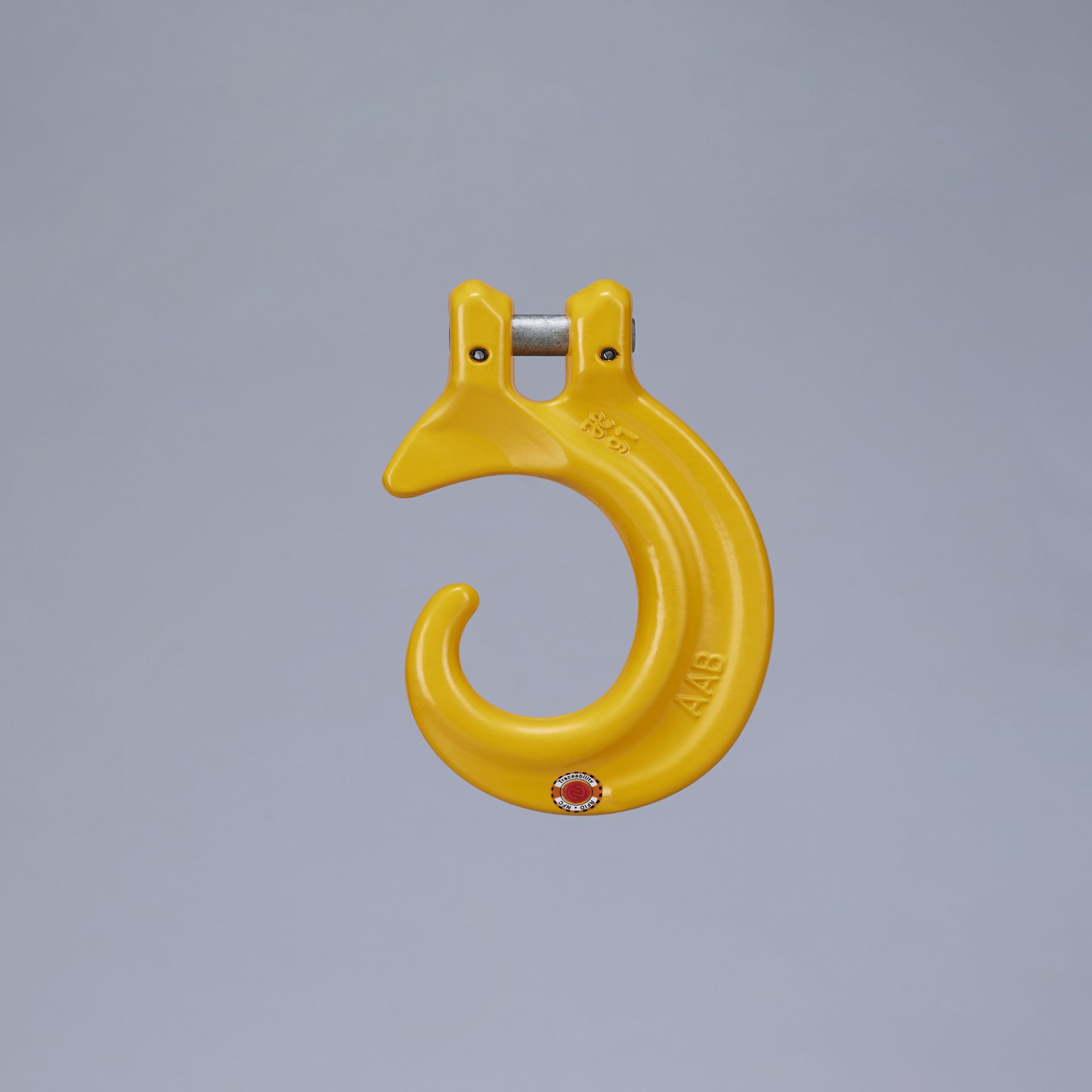

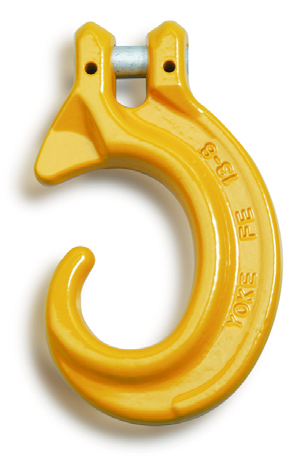

Clevis C Hook

Item No.8-097

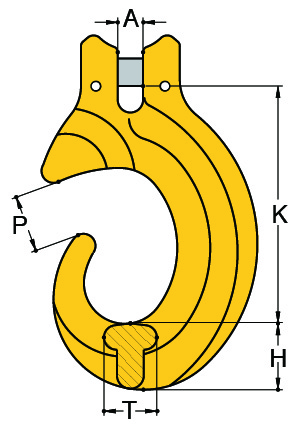

Item NO.	Compare	Working Load Limit	For Grade 80 Chain	Dimensions					N.W.
		tonnes	mm	A	H	K	P	T	kg
8-097-07	Compare	2	7,8	2	22	80	19	18	0.5
8-097-10	Compare	3.15	10	3.15	26	105	26	24	0.9
8-097-13	Compare	5.3	13	5.3	34	138	34	32	2.1
8-097-16	Compare	8	16	8	45	170	38	37	3.8

Item NO.	Compare	Working Load Limit	For Grade 80 Chain	Dimensions					N.W.
		lbs#ibest*371	inch#ibest*428	A#ibest*137	H#ibest*142	K#ibest*149	P#ibest*152	T#ibest*153	lbs#ibest*413
8-097-07	Compare	4,500	1/4-5/16	0.35	0.87	3.15	0.75	0.71	1.1
8-097-10	Compare	7,100	3/8	0.43	1.02	4.13	1.02	0.94	2
8-097-13	Compare	12,000	1/2	0.55	1.34	5.43	1.34	1.26	4.6
8-097-16	Compare	18,100	5/8	0.71	1.77	6.69	1.5	1.46	8.4
