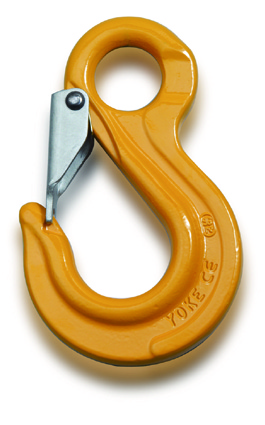

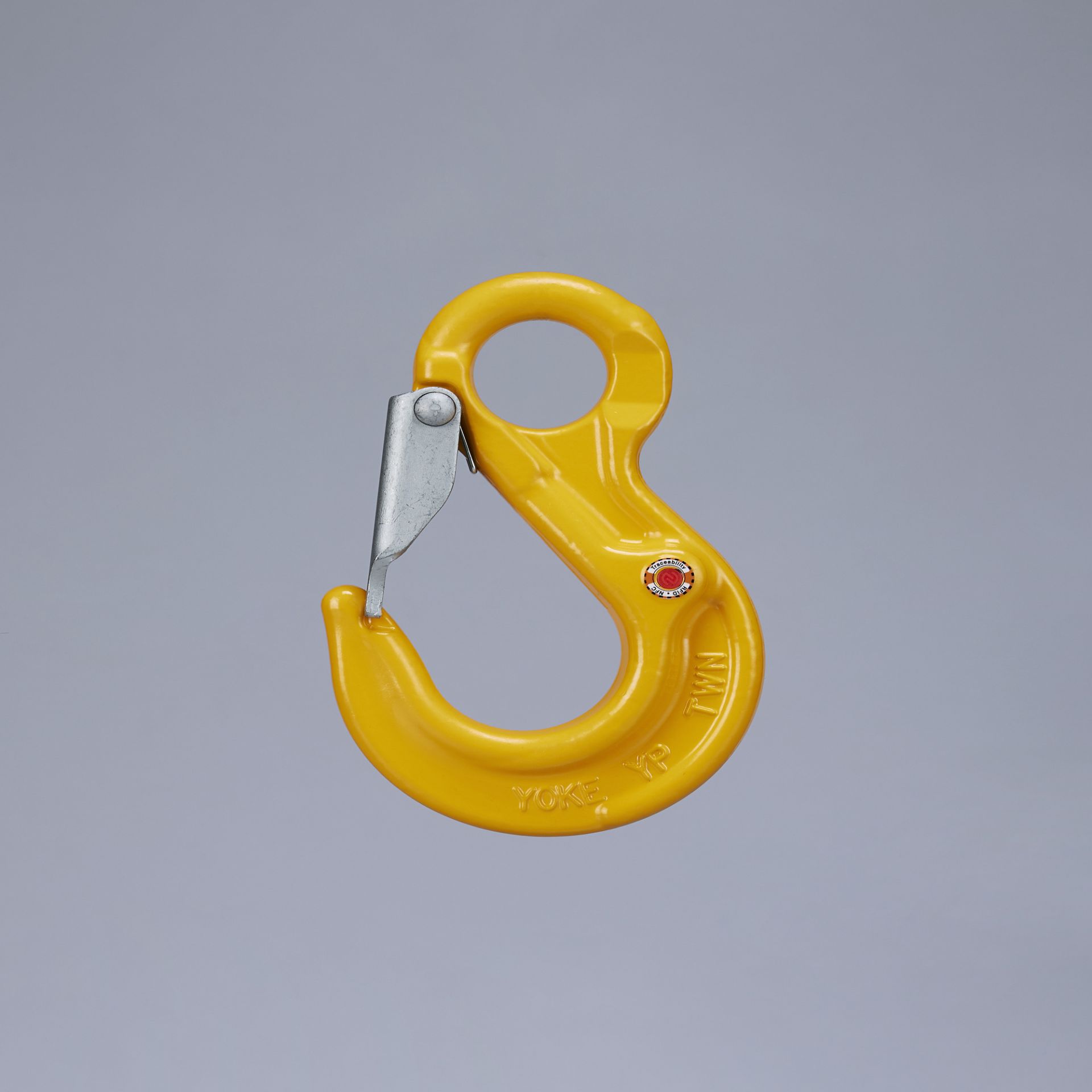

Eye Sling Hook

Item No.8-044S

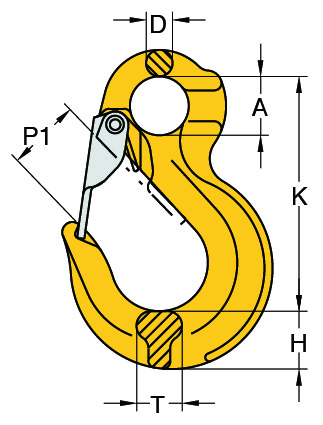

Item NO.	Compare	Working Load Limit	For Grade 80 Chain	Dimensions						N.W.
		tonnes	mm	A	D	H	K	P1	T	kg
8-044/S-06	Compare	1.12	6	20	10	19	80	23	17	0.3
8-044/S-07	Compare	2.00	7, 8	25	12	22	98	28	20	0.5
8-044/S-10	Compare	3.15	10	32	15	30	121	36	23	1.0
8-044/S-13	Compare	5.30	13	40	18	38	152	40	28	1.7
8-044/S-16	Compare	8.00	16	50	22	45	185	44	32	3.2
8-044/S-20	Compare	12.50	18, 20	62	27	49	225	45	46	5.5
8-044/S-22	Compare	15.00	22	51	31	62	244	73	52	9.0
8-044/S-26	Compare	21.20	26	64	35	77	285	77	61	13.5
8-044/S-32	Compare	31.50	32	89	40	80	352	114	65	20.0

Item NO.	Compare	Working Load Limit	For Grade 80 Chain	Dimensions						N.W.
		lbs#ibest*371	inch#ibest*428	A#ibest*137	D#ibest*140	H#ibest*142	K#ibest*149	P1#ibest*377	T#ibest*153	lbs#ibest*413
8-044/S-06	Compare	2,500	7/32	0.79	0.39	0.75	3.15	0.91	0.67	0.7
8-044/S-07	Compare	4,500	1/4-5/16	0.98	0.47	0.87	3.86	1.10	0.79	1.1
8-044/S-10	Compare	7,100	3/8	1.26	0.59	1.18	4.76	1.42	0.91	2.2
8-044/S-13	Compare	12,000	1/2	1.57	0.71	1.50	5.98	1.57	1.10	3.7
8-044/S-16	Compare	18,100	5/8	1.97	0.87	1.77	7.28	1.73	1.26	7.0
8-044/S-20	Compare	28,300	3/4	2.44	1.06	1.93	8.86	1.77	1.81	12.1
8-044/S-22	Compare	34,200	7/8	2.01	1.22	2.44	9.61	2.87	2.05	19.8
8-044/S-26	Compare	47,700	1	2.52	1.38	3.03	11.22	3.03	2.40	29.7
8-044/S-32	Compare	72,300	1-1/4	3.50	1.57	3.15	13.86	4.49	2.56	44.1
