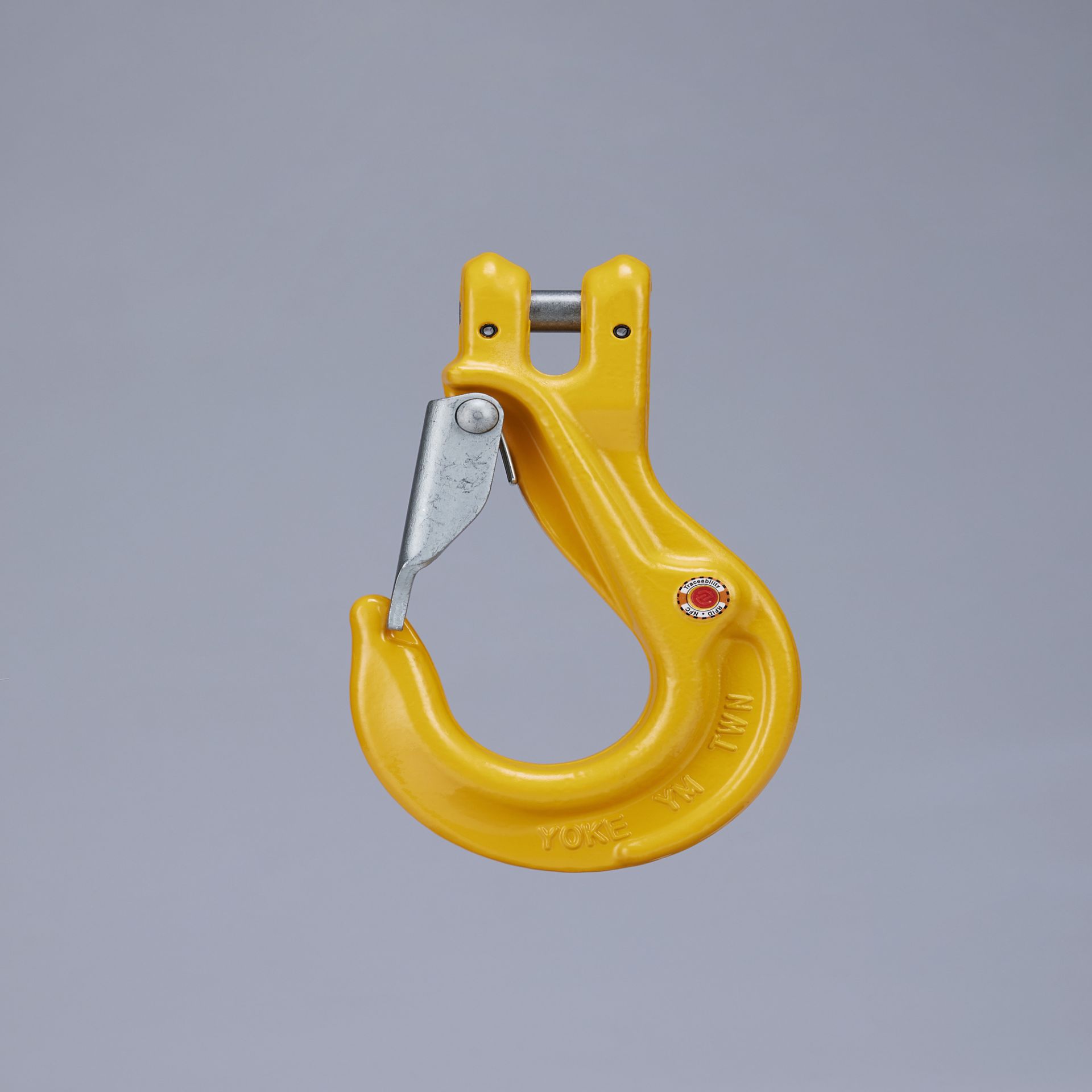

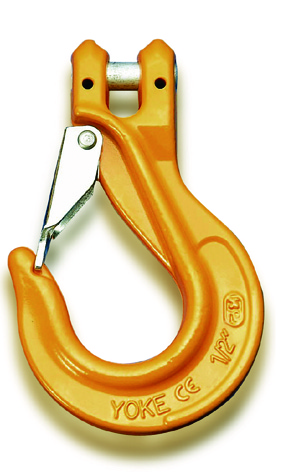

Clevis Sling Hook

Item No.8-043S

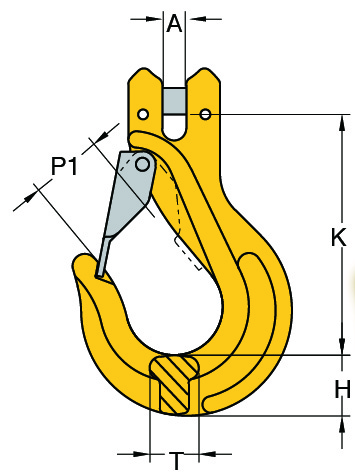

Item NO.	Compare	Working Load Limit	For Grade 80 Chain	Dimensions					N.W.
		tonnes	mm	A	H	K	P1	T	kg
8-043/S-06	Compare	1.12	6	7	18	79	79	15	0.3
8-043/S-07	Compare	2.00	7, 8	9	22	98	98	18	0.6
8-043/S-10	Compare	3.15	10	12	29	121	121	23	1.2
8-043/S-13	Compare	5.30	13	15	37	147	147	30	2.3
8-043/S-16	Compare	8.00	16	18	42	166	166	39	3.7
8-043/S-20	Compare	12.50	18, 20	21	50	200	200	47	6.5

Item NO.	Compare	Working Load Limit	For Grade 80 Chain	Dimensions					N.W.
		lbs#ibest*371	inch#ibest*428	A#ibest*137	H#ibest*142	K#ibest*149	P1#ibest*377	T#ibest*153	lbs#ibest*413
8-043/S-06	Compare	2,500	7/32	0.28	0.71	3.11	0.91	0.59	0.7
8-043/S-07	Compare	4,500	1/4-5/16	0.35	0.87	3.86	1.06	0.71	1.3
8-043/S-10	Compare	7,100	3/8	0.47	1.14	4.76	1.34	0.91	2.6
8-043/S-13	Compare	12,000	1/2	0.59	1.46	5.79	1.73	1.18	5.1
8-043/S-16	Compare	18,100	5/8	0.71	1.65	6.54	1.89	1.54	8.1
8-043/S-20	Compare	28,300	3/4	0.83	1.97	7.87	2.20	1.85	14.3
