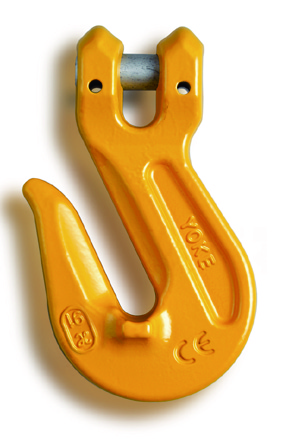

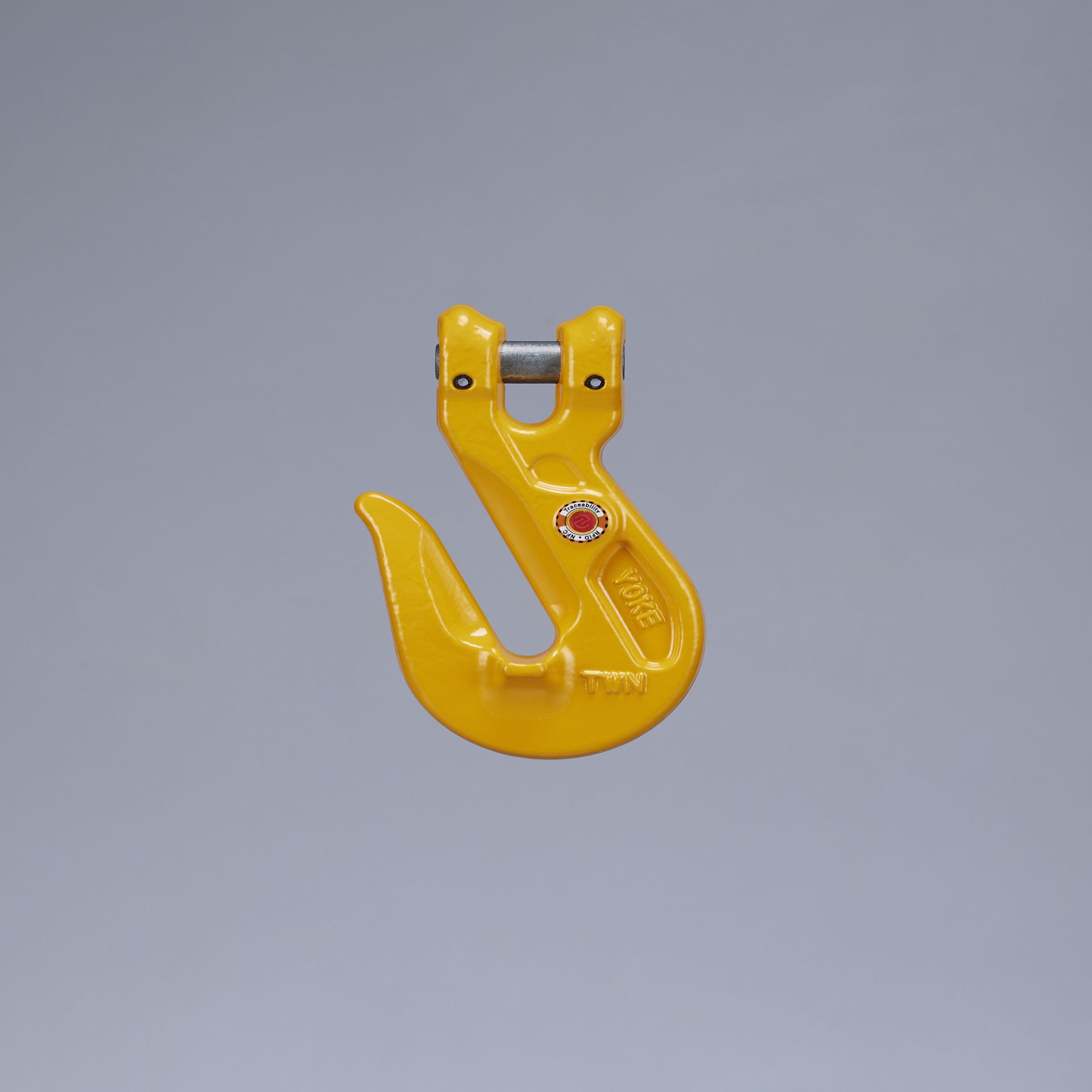

Clevis Grab Hook.

Item No.8-042

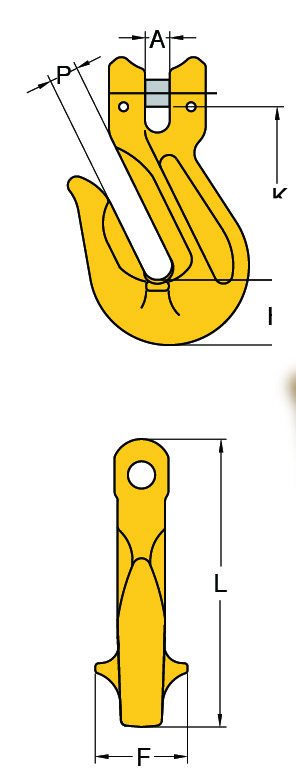

Item NO.	Compare	Working Load Limit	For Grade 80 Chain	Dimensions						N.W.
		tonnes	mm	A	F	H	K	L	P	kg
8-042-06	Compare	1.12	6	7	7	17	47	79	8	0.2
8-042-07	Compare	2.00	7, 8	9	9	21	54	93	10	0.3
8-042-10	Compare	3.15	10	12	12	29	77	128	13	0.8
8-042-13	Compare	5.30	13	15	15	37	99	165	16	1.6
8-042-16	Compare	8.00	16	18	18	45	114	195	20	2.8
8-042-20	Compare	12.50	18, 20	21	21	52	130	222	23	4.8

Item NO.	Compare	Working Load Limit	For Grade 80 Chain	Dimensions						N.W.
		lbs#ibest*371	inch#ibest*428	A#ibest*137	F#ibest*164	H#ibest*142	K#ibest*149	L#ibest*150	P#ibest*152	lbs#ibest*413
8-042-06	Compare	2,500	7/32	0.28	0.98	0.67	1.85	3.11	0.31	0.4
8-042-07	Compare	4,500	1/4-5/16	0.35	1.18	0.83	2.13	3.66	0.39	0.7
8-042-10	Compare	7,100	3/8	0.47	1.61	1.14	3.03	5.04	0.51	1.8
8-042-13	Compare	12,000	1/2	0.59	2.05	1.46	3.9	6.5	0.63	3.5
8-042-16	Compare	18,100	5/8	0.71	2.24	1.77	4.49	7.68	0.79	6.2
8-042-20	Compare	28,300	3/4	0.83	2.87	2.05	5.12	8.74	0.91	10.6
