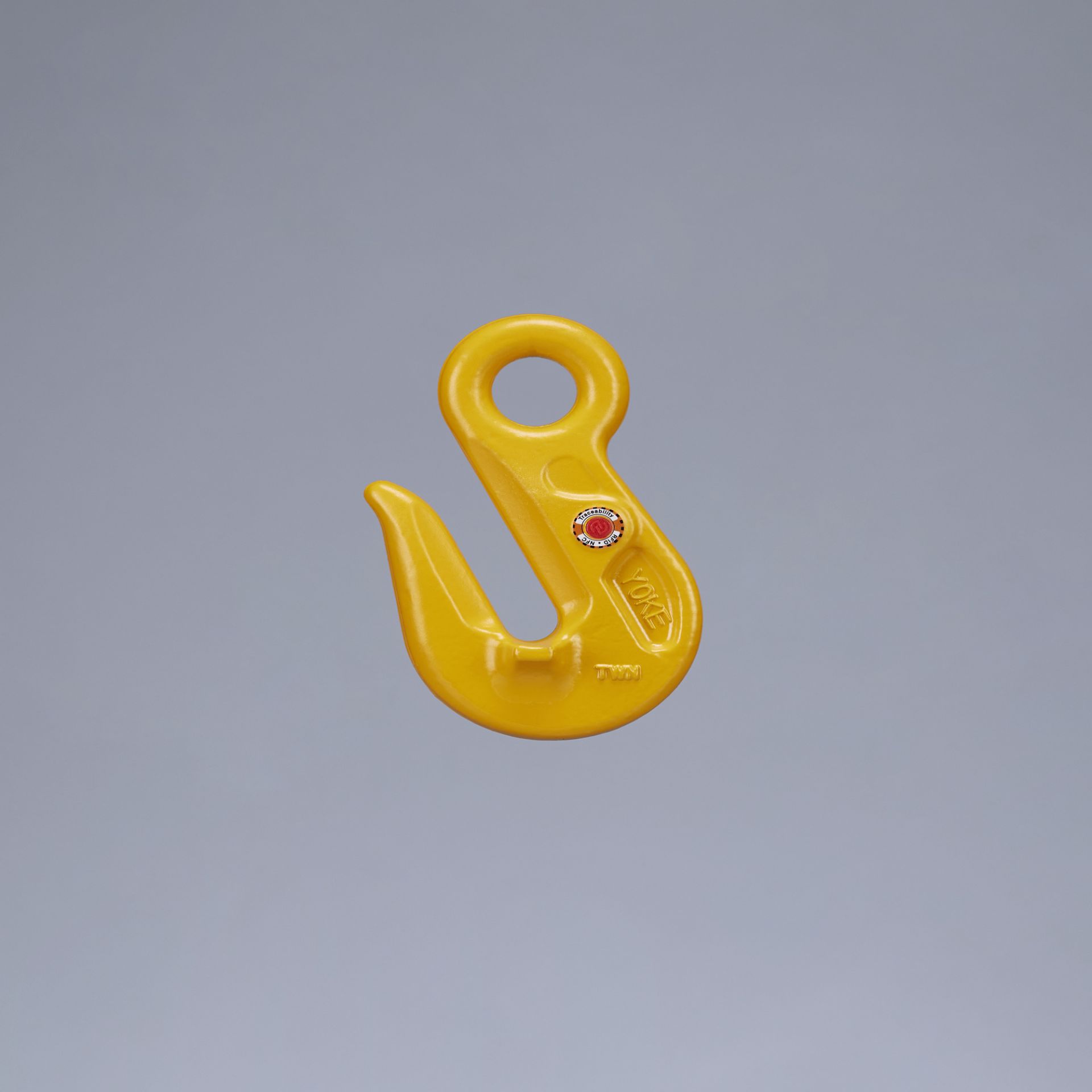

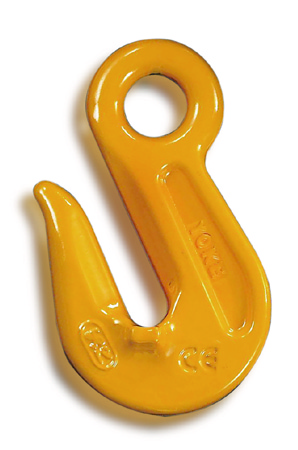

Eye Grab Hook

Item No.8-041

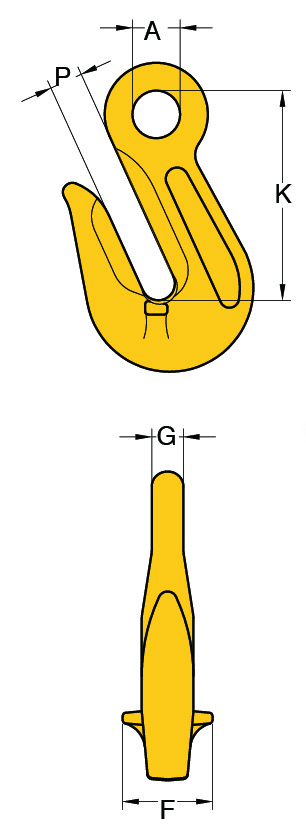

Item NO.	Compare	Working Load Limit	For Grade 80 Chain	Dimensions					N.W.
		tonnes	mm	A	F	G	K	P	kg
8-041-06	Compare	1.12	6	13	26	8	51	51	0.2
8-041-07	Compare	2.00	7, 8	15	30	9	62	62	0.3
8-041-10	Compare	3.15	10	20	40	13	82	82	0.6
8-041-13	Compare	5.30	13	26	52	16	107	107	1.4
8-041-16	Compare	8.00	16	30	70	20	132	132	2.3
8-041-20	Compare	12.50	18, 20	38	73	24	147	147	3.9
8-041-22	Compare	15.00	22	42	86	26	166	166	4.7
8-041-26	Compare	21.20	26	50	110	32	207	207	9.9
8-041-32	Compare	31.50	32	61	127	41	269	269	21.4

Item NO.	Compare	Working Load Limit	For Grade 80 Chain	Dimensions					N.W.
		lbs#ibest*371	inch#ibest*428	A#ibest*137	F#ibest*164	G#ibest*141	K#ibest*149	P#ibest*152	lbs#ibest*413
8-041-06	Compare	2,500	7/32	0.51	0.31	0.31	2.01	0.31	0.4
8-041-07	Compare	4,500	1/4-5/16	0.59	0.35	0.35	2.44	0.39	0.7
8-041-10	Compare	7,100	3/8	0.79	0.51	0.51	3.23	0.51	1.3
8-041-13	Compare	12,000	1/2	1.02	0.63	0.63	4.21	0.63	3.1
8-041-16	Compare	18,100	5/8	1.18	0.79	0.79	5.2	0.87	5.1
8-041-20	Compare	28,300	3/4	1.5	0.94	0.94	5.79	0.94	8.6
8-041-22	Compare	34,200	7/8	1.65	1.02	1.02	6.54	1.02	10.4
8-041-26	Compare	47,700	1	1.97	1.26	1.26	8.15	1.18	21.8
8-041-32	Compare	72,300	1-1/4	2.4	1.61	1.61	10.59	1.54	47.1
