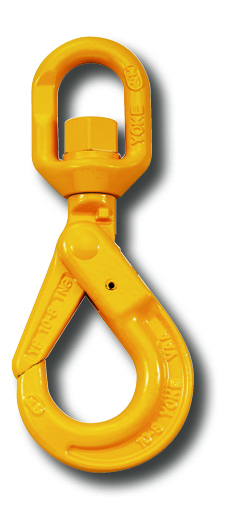

Swivel Self Locking Hook

Item No.8-027

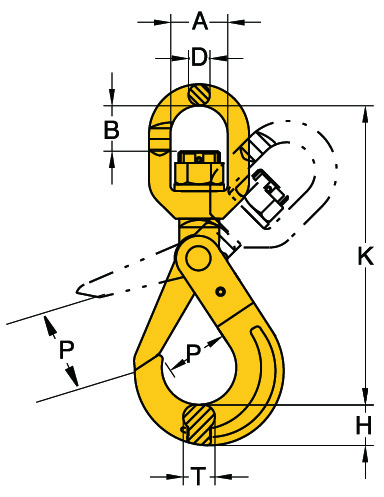

Item NO.	Compare	Working Load Limit	For Grade 80 Chain	Dimensions							N.W.
		tonnes	mm	A	B	D	H	K	P	T	kg
8-027-06	Compare	1.12	6	32	25	12	19	19	28	15	0.7
8-027-07	Compare	2.00	7, 8	36	30	14	24	24	34	20	1.2
8-027-10	Compare	3.15	10	41	38	16	30	30	44	26	2.0
8-027-13	Compare	5.30	13	46	48	22	39	39	51	30	4.1
8-027-16	Compare	8.00	16	61	56	24	49	49	61	36	7.2
8-027-20	Compare	12.50	18, 20	74	86	26	62	62	91	48	11.5
8-027-22	Compare	15.00	22	97	98	33	63	63	80	49	18.6
8-027-26	Compare	21.20	26	123	120	52	69	69	99	56	31.9

Item NO.	Compare	Working Load Limit	For Grade 80 Chain	Dimensions							N.W.
		lbs#ibest*371	inch#ibest*428	A#ibest*137	B#ibest*138	D#ibest*140	H#ibest*142	K#ibest*149	P#ibest*152	T#ibest*153	lbs#ibest*413
8-027-06	Compare	2,500	7/32	1.26	0.98	0.47	0.75	5.87	1.10	1.5	1.5
8-027-07	Compare	4,500	1/4-5/16	1.42	1.18	0.55	0.94	7.32	1.34	2.6	2.6
8-027-10	Compare	7,100	3/8	1.61	1.50	0.63	1.18	8.58	1.73	4.4	4.4
8-027-13	Compare	12,000	1/2	1.81	1.89	0.87	1.54	10.87	2.01	9	9
8-027-16	Compare	18,100	5/8	2.4	2.2	0.94	1.93	12.95	2.4	15.9	15.9
8-027-20	Compare	28,300	3/4	2.91	3.39	1.02	2.44	15.87	3.58	25.3	25.3
8-027-22	Compare	34,200	7/8	3.82	3.86	1.3	2.48	17.99	3.15	41	41
8-027-26	Compare	47,700	1	4.84	4.72	2.05	2.72	21.06	3.9	70.3	70.3
