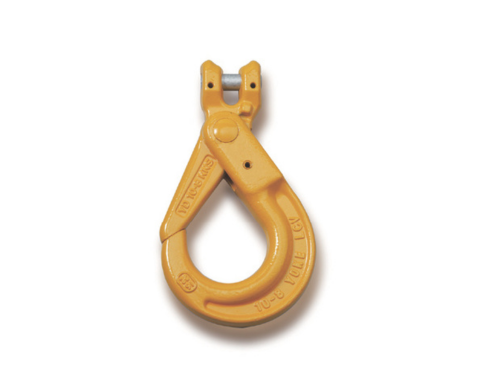

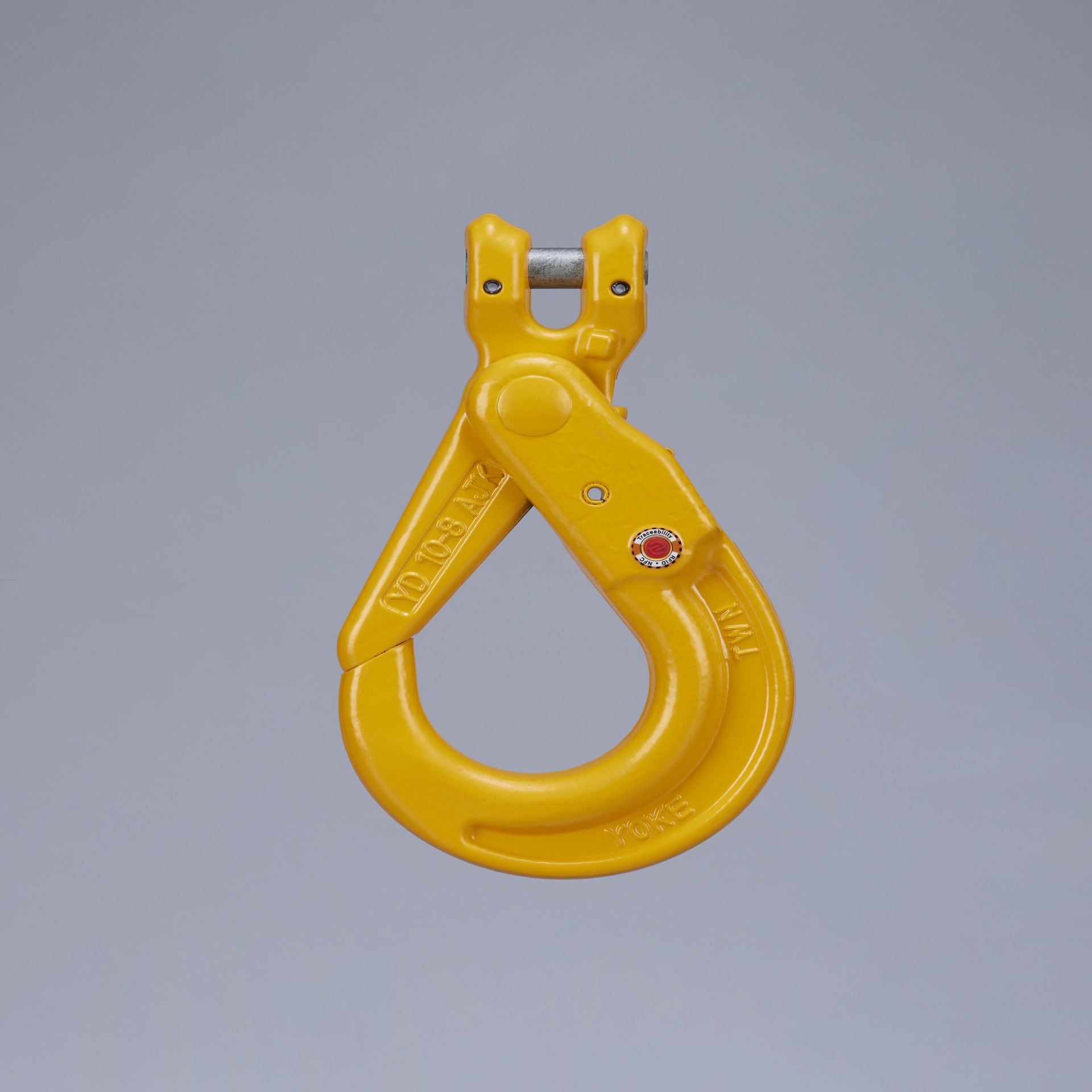

Clevis Self Locking Hook.

Item No.8-026

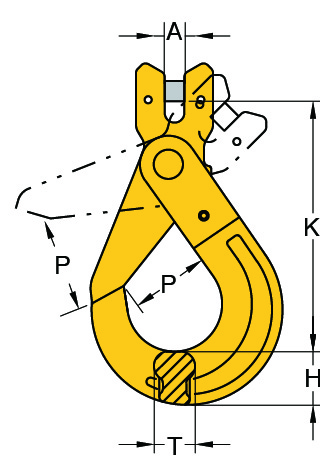

Item NO.	Compare	Working Load Limit	For Grade 80 Chain	Dimensions					N.W.
		tonnes	mm	A	H	K	P	T	kg
8-026-06	Compare	1.12	6	7	7	93	28	15	0.5
8-026-07	Compare	2.00	7, 8	9	9	119	34	20	0.8
8-026-10	Compare	3.15	10	12	12	143	44	26	1.4
8-026-13	Compare	5.30	13	15	15	179	51	30	2.9
8-026-16	Compare	8.00	16	18	18	212	61	36	5.6
8-026-20	Compare	12.50	18, 20	21	21	243	91	48	9.0
8-026-22	Compare	15.00	22	24	24	273	80	49	13.0

Item NO.	file download	Compare	Working Load Limit	For Grade 80 Chain	Dimensions					N.W.
			lbs#ibest*371	inch#ibest*428	A#ibest*137	H#ibest*142	K#ibest*149	P#ibest*152	T#ibest*153	lbs#ibest*413
8-026-06	-	Compare	2,500	7/32	0.28	0.28	3.66	1.10	0.59	1.1
8-026-07	-	Compare	4,500	1/4-5/16	0.35	0.35	4.69	1.34	0.79	1.8
8-026-10	-	Compare	7,100	3/8	0.47	0.47	5.63	1.73	1.02	3.1
8-026-13	Download	Compare	12,000	1/2	0.59	0.59	7.05	2.01	1.18	6.4
8-026-16	Download	Compare	18,100	5/8	0.71	0.71	8.35	2.40	1.42	12.3
8-026-20	-	Compare	28,300	3/4	0.83	0.83	9.57	3.58	1.89	19.8
8-026-22	-	Compare	34,200	7/8	0.94	0.94	10.75	3.15	1.93	28.6
