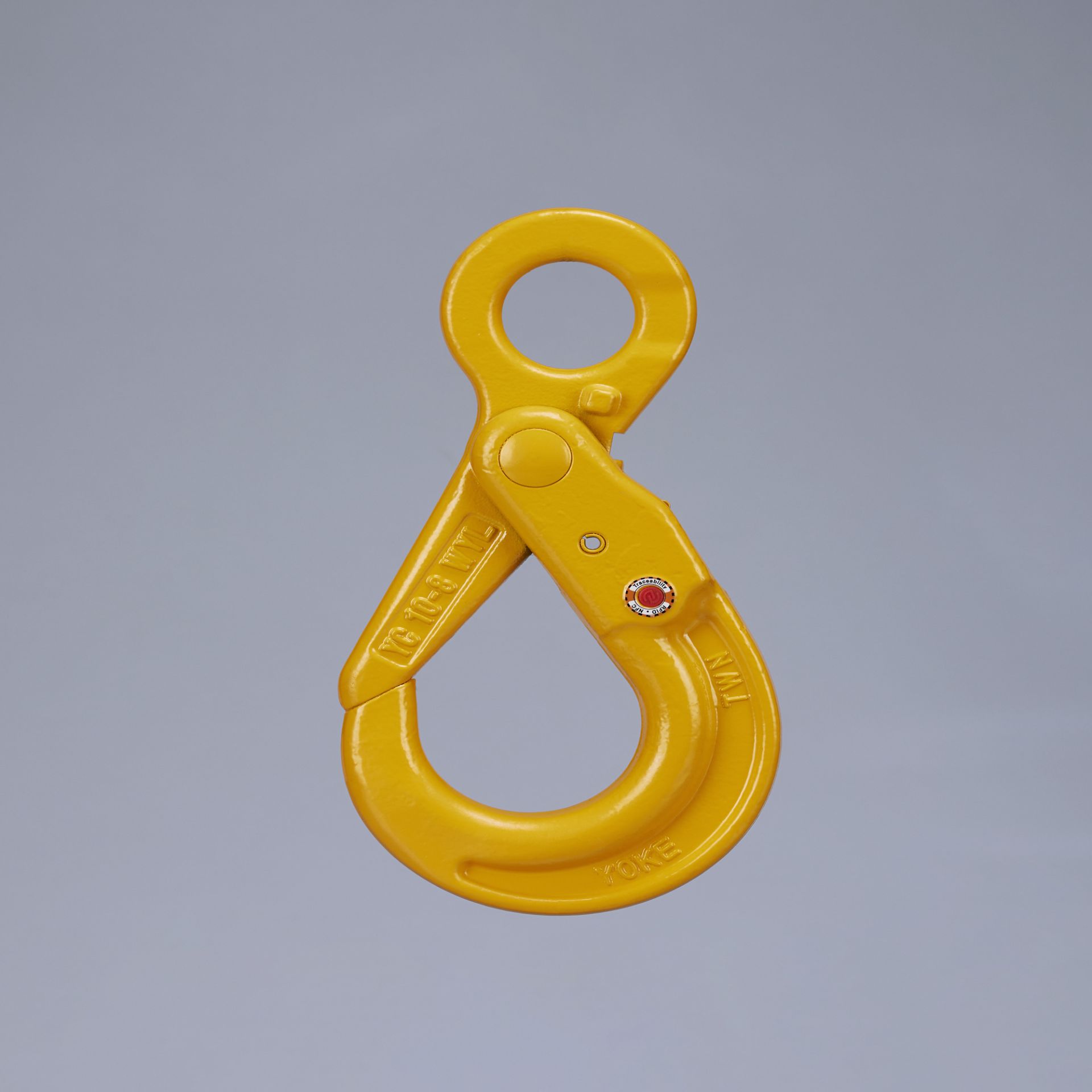

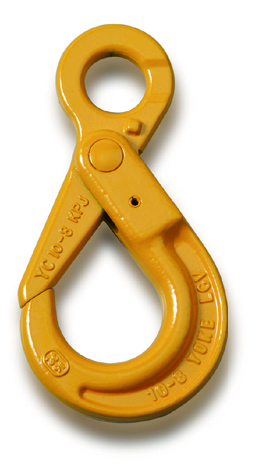

Eye Self Locking Hook

Item No.8-025

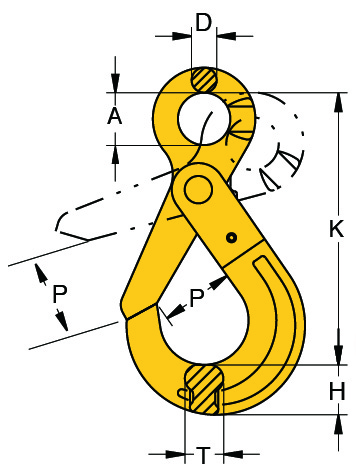

Item NO.	Compare	Working Load Limit	For Grade 80 Chain	Dimensions						N.W.
		tonnes	mm	A	D	H	K	P	T	kg
8-025-06	Compare	1.12	6	21	10	19	110	28	15	0.5
8-025-07	Compare	2.00	7, 8	25	11	24	136	34	20	0.8
8-025-10	Compare	3.15	10	33	13	30	167	44	26	1.4
8-025-13	Compare	5.30	13	40	16	39	207	51	30	3.0
8-025-16	Compare	8.00	16	50	21	49	252	61	36	5.8
8-025-20	Compare	12.50	18, 20	62	23	62	281	91	48	8.5
8-025-22	Compare	15.00	22	70	24	63	319	80	49	12.5
8-025-26	Compare	21.20	26	80	25	69	343	99	56	14.0
8-025-28	Compare	25.00	28	92	28	81	405	123	63	26.0

Item NO.	Compare	Working Load Limit	For Grade 80 Chain	Dimensions						N.W.
		lbs#ibest*371	inch#ibest*428	A#ibest*137	D#ibest*140	H#ibest*142	K#ibest*149	P#ibest*152	T#ibest*153	lbs#ibest*413
8-025-06	Compare	2,500	2,500	0.83	0.39	0.75	4.33	1.10	0.59	1.1
8-025-07	Compare	4,500	4,500	0.98	0.43	0.94	5.35	1.34	0.79	1.8
8-025-10	Compare	7,100	7,100	1.30	0.51	1.18	6.57	1.73	1.02	3.1
8-025-13	Compare	12,000	12,000	1.57	0.63	1.54	8.15	2.01	1.18	6.6
8-025-16	Compare	18,100	18,100	1.97	0.83	1.93	9.92	2.40	1.42	12.8
8-025-20	Compare	28,300	28,300	2.44	0.91	2.44	11.06	3.58	1.89	18.7
8-025-22	Compare	34,200	34,200	2.76	0.94	2.48	12.56	3.15	1.93	27.5
8-025-26	Compare	47,700	47,700	3.15	0.98	2.72	13.50	3.90	2.20	30.8
8-025-28	Compare	55,100	55,100	3.62	1.10	3.19	15.94	4.84	2.48	57.3
