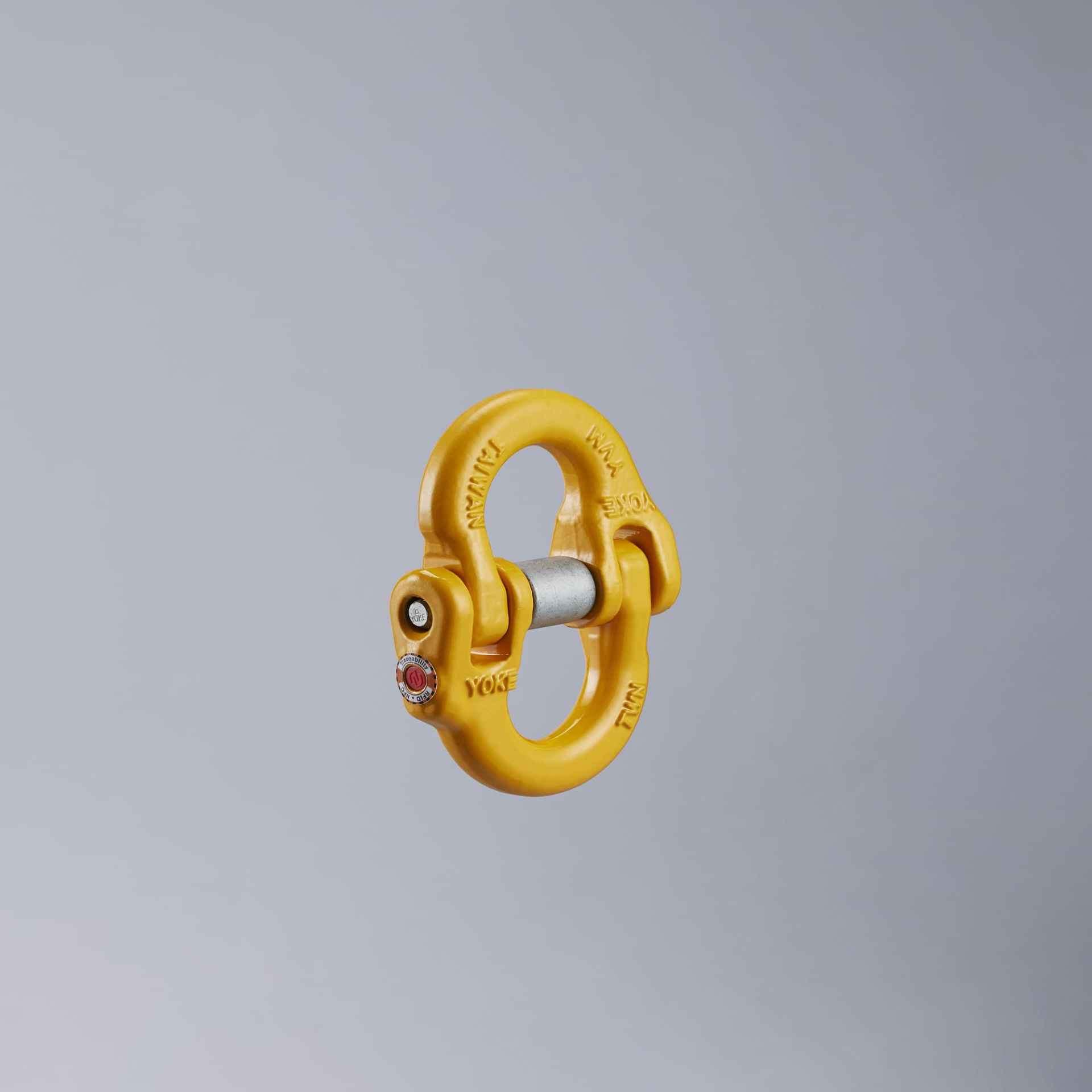

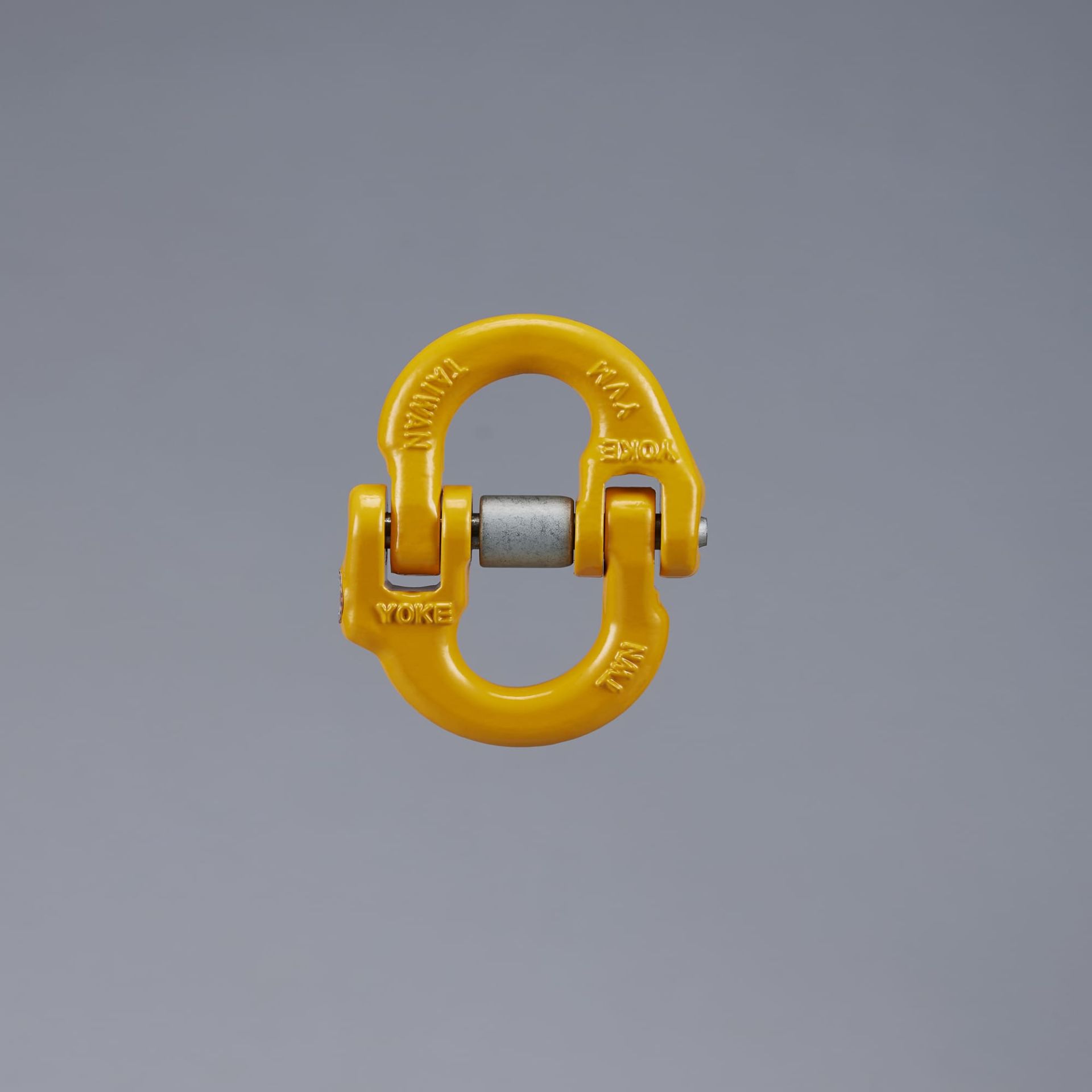

Connecting Link

Item No.8-015

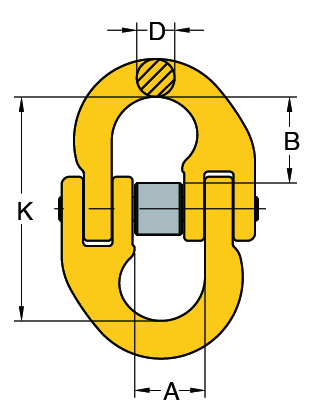

Item NO.	file download	Compare	Working Load Limit	For Grade 80 Chain	Dimensions				N.W.
			tonnes	mm	A	B	D	K	kg
8-015-06	Download	Compare	1.12	6	15	17	7	45	0.1
8-015-07	Download	Compare	2	7, 8	18	22	9	58	0.2
8-015-10	Download	Compare	3.15	10	26	27	11	69	0.3
8-015-13	Download	Compare	5.3	13	30	37	15	91	0.7
8-015-16	Download	Compare	8	16	36	39	19	101	1.1
8-015-20	Download	Compare	12.5	18, 20	42	46	22	122	1.9
8-015-22	Download	Compare	15	22	49	59	24	152	3
8-015-26	Download	Compare	21.2	26	55	63	30	164	5
8-015-32	Download	Compare	31.5	32	69	79	36	203	9

Item NO.	file download	Compare	Working Load Limit	For Grade 80 Chain	Dimensions				N.W.
			lbs#ibest*371	inch#ibest*428	A#ibest*137	B#ibest*138	D#ibest*140	K#ibest*149	lbs#ibest*413
8-015-06	Download	Compare	7/32	2,500	0.59	0.67	0.28	1.77	0.2
8-015-07	Download	Compare	1/4-5/16	4,500	0.71	0.87	0.35	2.28	0.4
8-015-10	Download	Compare	3/8	7,100	1.02	1.06	0.43	2.72	0.7
8-015-13	Download	Compare	1/2	12,000	1.18	1.46	0.59	3.58	1.5
8-015-16	Download	Compare	5/8	18,100	1.42	1.54	0.75	3.98	2.4
8-015-20	Download	Compare	3/4	28,300	1.65	1.81	0.87	4.8	4.2
8-015-22	Download	Compare	7/8	34,200	1.93	2.32	0.94	5.98	6.6
8-015-26	Download	Compare	1	47,700	2.17	2.48	1.18	6.46	11
8-015-32	Download	Compare	1-1/4	72,300	2.72	3.11	1.42	7.99	19.8
