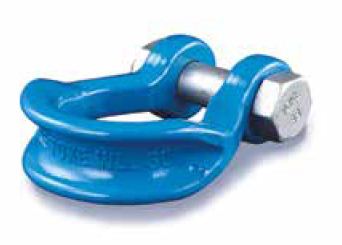

8-809 / Forged Alloy Wide Body Shackle (with Bolt Pin)
Shackle
Description
¡´Shackles are forged alloy steel with alloy pin. ¡´Size and the Working Load Limit permanently shown on each shackle. ¡´All shackles with Batch Code which links to Test Certificate and quality traceability. ¡´100% magnaflux crack detection during manufacturing. ¡´20,000 cycle fatigue rated to 1.5 times Working Load Limit. ¡¹ Minimum Ultimate Load is 5 times the W orking Load Limit. Maximun Proof Load is 2 times the W orking Load Limit. ¡¹ 8-809-19/-26 See Figure 1 ¡¹ 8-809-32/-38 See Figure 2
Remark
Specification
Item No.

Nominal Size

 Working Load Limit Dimensions (mm) N.W.
mm tonnes* A B C D E G H K R W Kg

8-809-19

 19 7 91 41 18 22 32 46 150 104 32 33 1.7
8-809-26 26 12.5 118 54 23 29 41 61 194 140 35 44 3.8
8-809-32 32 18 148 64 30 36 51 68 238 172 38 54 6.7
8-809-38 38 30 176 80 35 45 64 89 289 216 45 60 12.5



Item No.

Nominal Size

 Working Load Limit Dimensions (inch) N.W.
inch tonnes* A B C D E G H K R W lbs

8-809-19

 3/4 7 3.58 1.61 0.70 0.87 1.26 1.81 5.90 4.09 1.26 1.30 3.7
8-809-26 1 12.5 4.64 2.12 0.91 1.14 1.61 2.40 7.64 5.51 1.38 1.73 8.4
8-809-32 1 1/4 18 5.83 2.52 1.18 1.42 2.00 2.68 9.37 6.77 1.50 2.13 14.7
8-809-38 1 1/2 30 6.93 3.15 1.38 1.77 2.50 3.50 11.38 8.50 1.77 2.36 27.5
